PLP 3D printing produces parts with mechanical, thermal, and chemical properties comparable to injection-molded or CNC-machined components—without tooling costs. Using the same industrial-grade plastic pellets as conventional manufacturing, PLP delivers true production-quality parts for demanding applications.

PLP also prints high-resolution wax patterns for lost-wax investment casting, enabling digital designs to be manufactured in metals such as titanium, aluminum, stainless steel, and nickel alloys.

Beyond engineering plastics, PLP uniquely enables direct 3D printing of polystyrene and urethane foams with densities from 0.05 to 0.30 g/cm³, expanding possibilities in lightweight and cushioning applications.

PLP is manufacturing-grade because it directly uses the same engineering thermoplastics used in injection molding, rather than alternative or resin-based materials, enabling 3D-printed parts to be produced from true production plastics already proven in mass manufacturing.

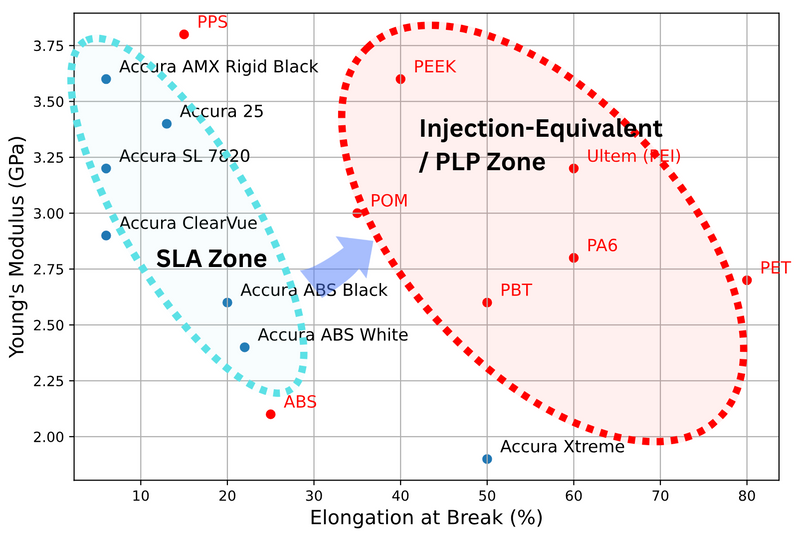

Young’s Modulus vs. Elongation at Break

PLP parts overlap with injection-molded engineering therm-plastics, maintaining both stiffness and high elongation because PLP uses proven the same plastics. This results in ductile, end-use mechanical behavior.

In contrast, SLA materials achieve stiffness at the expense of elongation. Their cross-linked photopolymer structure limits molecular mobility, leading to brittle, prototype-grade perfor-mance even when modulus appears comparable.

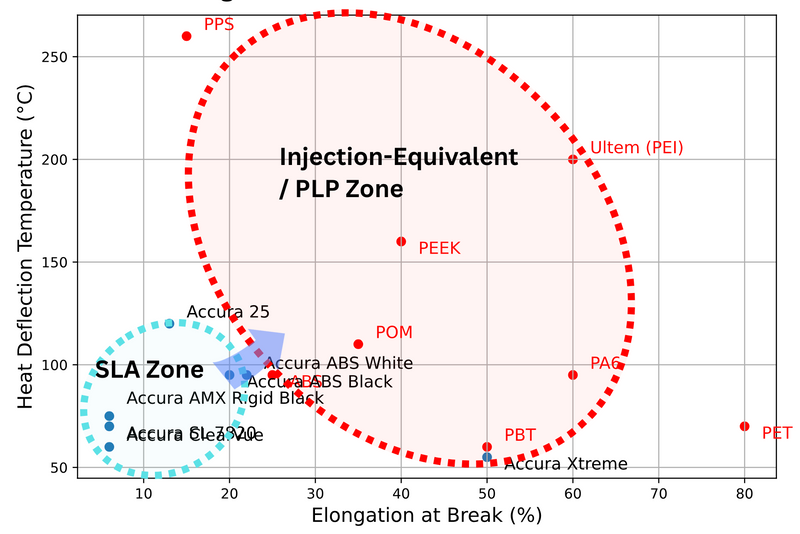

Heat Deflection Temperature vs. Elongation at Break

PLP materials maintain usable elongation while achieving higher HDT, reflecting the thermal stability of injection-molding-grade thermoplastics.

SLA parts show limited HDT and rapidly lose elongation as thermal resistance increases, restricting them to low-load, prototype applications.

Certified Materials. No Requalification Required.

A defining advantage of PLP 3D Printing is its ability to process certified, industry-standard materials specified by the original designer.

In highly regulated sectors, components must be manufactured from precisely defined materials. Substituting alternative materials—common in many conventional 3D printing processes—often triggers extensive and costly requalification, testing, and certification procedures.

Because PLP uses the exact specified materials, additional re-certification can often be avoided—allowing parts to move directly into end-use production while maintaining compliance.

PLP 3D printing enables generative design by producing fully consolidated, isotropic parts from injection-molding-grade thermoplastics, allowing optimized designs to be manufactured directly as production-grade end-use parts.

The Manufacturability Gap in Generative Design

Generative design algorithms create highly optimized geometries by distributing material only where load, stiffness, and thermal requirements demand it.

However, these geometries are typically difficult or impossible to manufacture using conventional processes or layer-based 3D printing due to anisotropy, weak interlayer bonding, and limited material performance.

Turning Optimized Geometry into Real Products

PLP 3D printing overcomes these constraints by using injection-molding-grade engineering thermoplastics and a layer-free consolidation process.

As a result, structurally optimized, lightweight geometries can move directly from algorithmic design to production-grade, end-use components, establishing a new production design paradigm where performance, material efficiency, and manufacturability are unified.

PLP uses a layer-by-layer printing process, similar to SLA, DLP 3D printing, to create high-precision structures. As a result, PLP achieves surface quality and dimensional resolution comparable to SLA, 8K DLP printing systems, enabling smooth surfaces and fine geometric detail.

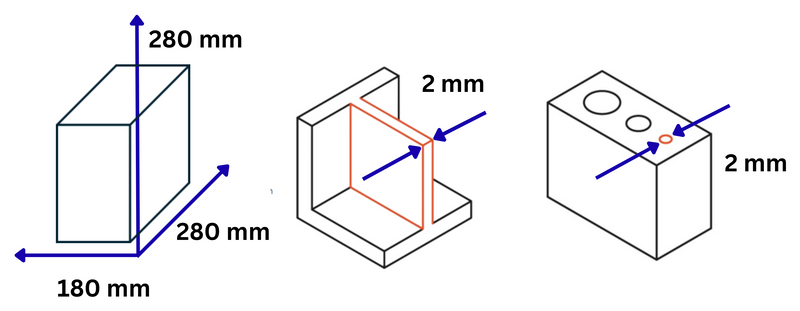

280 mm Printing Size& 2 mm Wall Thickness

PLP 3D printing currently supports a maximum build size of 280 × 180 × 280 mm, delivering high-resolution surface quality comparable to SLA within this volume.

For light foam PLP printing, a minimum wall thickness of 4 mm is required to provide sufficient space for proper foam cell formation and structural consistency.

Material Selection for Engineering Plastic

Select from our in-stock engineering plastics (PEEK, ULTMEM, PA6, PPS), all of which are industrial injection-grade materials.

Alternatively, Specify your own injection-molding-grade plastic by providing the manufacturer and product number, 3DMaterials will source and process the material using the PLP system.

Alloy Selection for Metal 3D Parts

Select the desired alloy from the list provided on this website (TiC4, SUS303, MUNEL, AL3015). 3DMaterials GD will first PLP 3D print the design as a high-resolution wax pattern, then manufacture the final component using conventional lost-wax investment casting.

Materials Selection for Light Foam Parts

PLP-printed polystyrene foam parts, with densities as low as 0.1 g/cm³, are optimized for applications where extreme light weight, thermal insulation, and energy absorption are essential.

PLP-printed urethane foam parts offer a complementary set of capabilities, with densities ranging from 0.25 g/cm³ to 0.40 g/cm³. These foams are valued for their durability, resilience, and long-term support, making them well suited for insulation applications such as buildings and refrigerators, as well as cushioning applications including mattresses, furniture, and automotive seating. A primary application is footwear midsoles,
