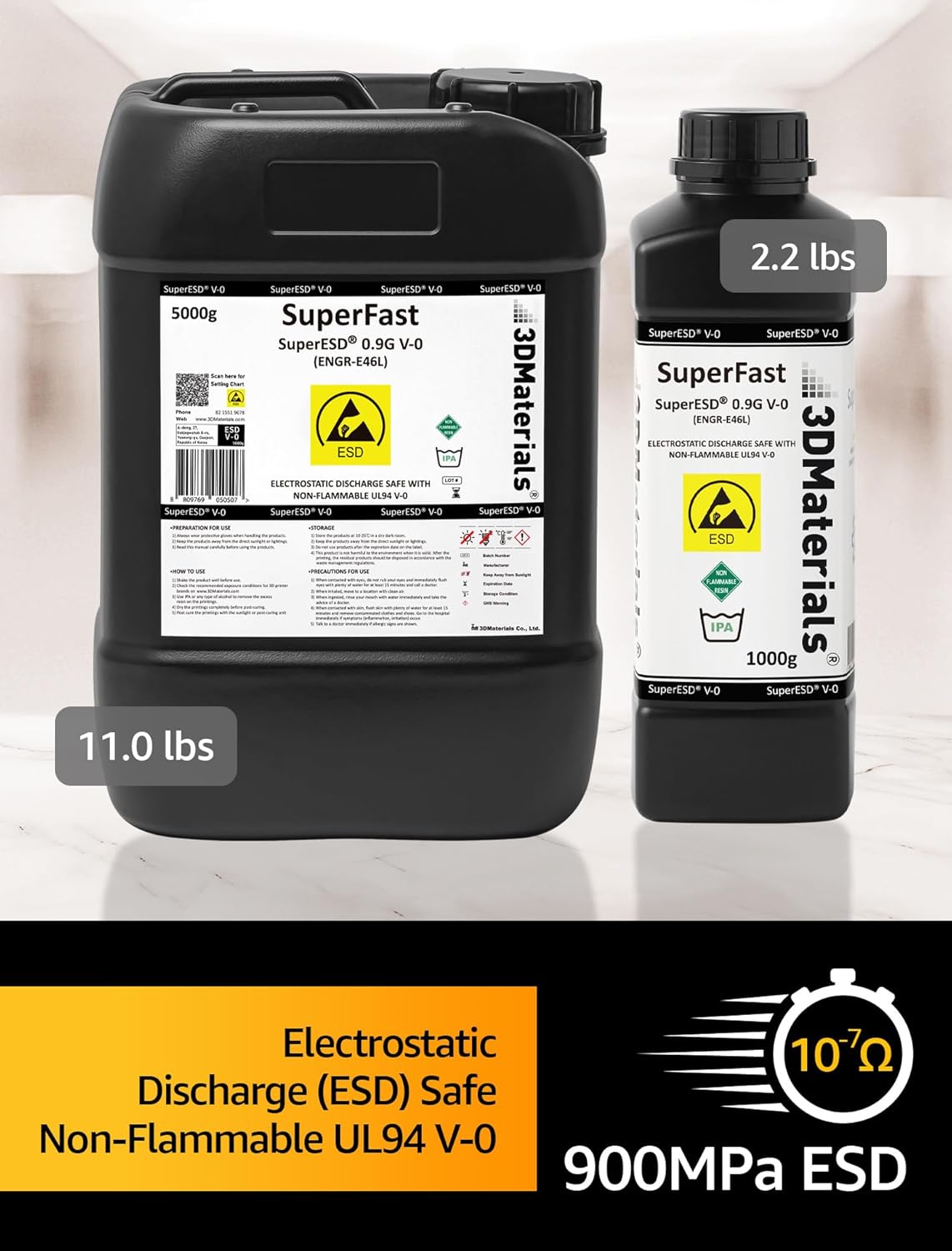

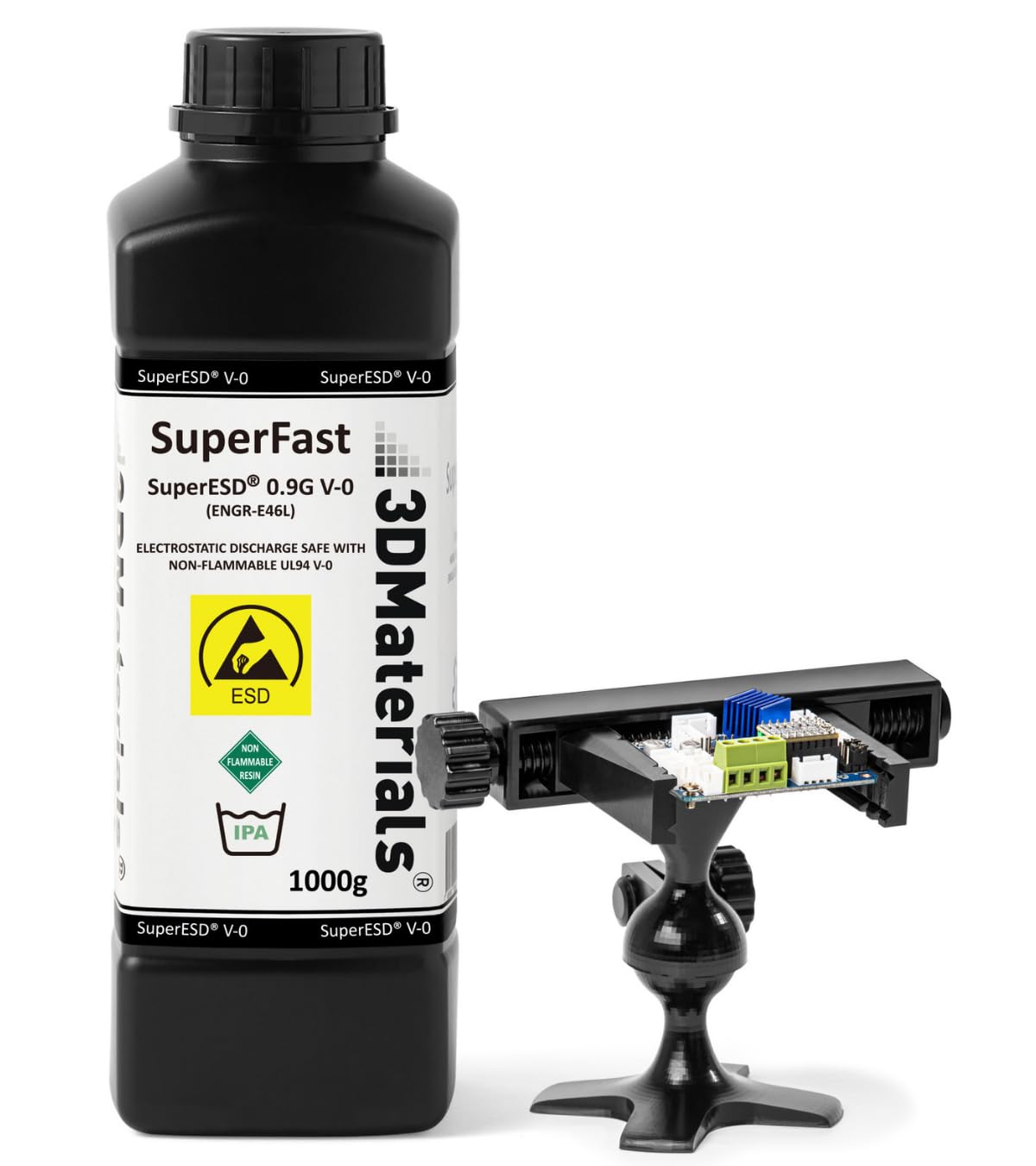

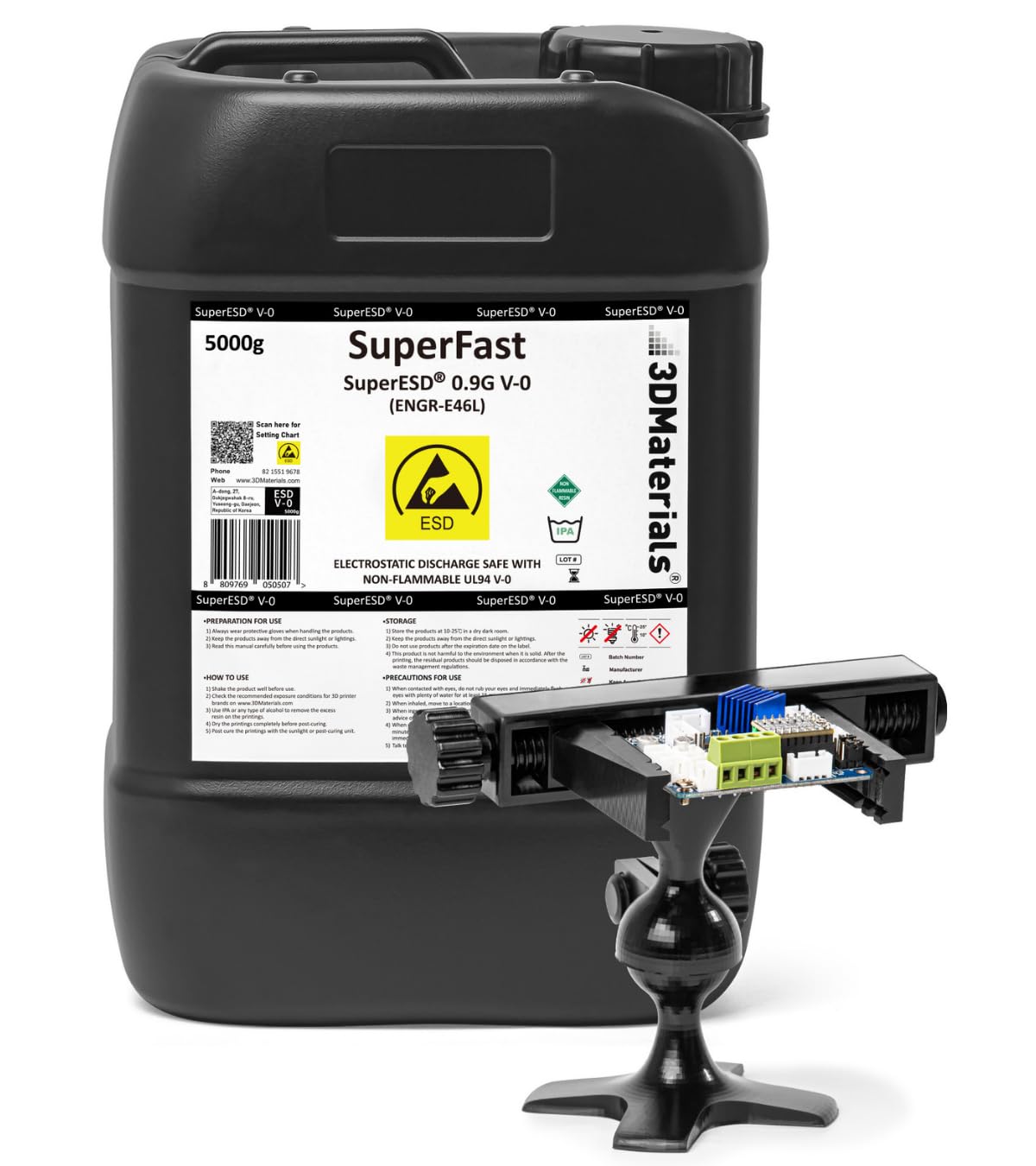

SuperESD 0.9GPa UL94 V-0, 3D Printer Resin Electrostatic Discharges Safe and Flame-Retardant Parts, Made in Korea
SuperESD 0.9GPa UL94 V-0, 3D Printer Resin Electrostatic Discharges Safe and Flame-Retardant Parts, Made in Korea
SuperESD 0.9GPa UL94 V-0, 3D Printer Resin Electrostatic Discharges Safe and Flame-Retardant Parts, Made in Korea
SuperESD 0.9GPa UL94 V-0, 3D Printer Resin Electrostatic Discharges Safe and Flame-Retardant Parts, Made in Korea
SuperESD 0.9GPa UL94 V-0, 3D Printer Resin Electrostatic Discharges Safe and Flame-Retardant Parts, Made in Korea
SuperESD 0.9GPa UL94 V-0, 3D Printer Resin Electrostatic Discharges Safe and Flame-Retardant Parts, Made in Korea
SuperESD 0.9GPa UL94 V-0, 3D Printer Resin Electrostatic Discharges Safe and Flame-Retardant Parts, Made in Korea
SuperESD 0.9GPa UL94 V-0, 3D Printer Resin Electrostatic Discharges Safe and Flame-Retardant Parts, Made in Korea

SuperESD 0.9GPa UL94 V-0, 3D Printer Resin Electrostatic Discharges Safe and Flame-Retardant Parts, Made in Korea

$126.90
$126.90
Size: 1000g
Vendor: 3DMaterials
SKU: 3DP-ENG-E46L-1.0-B-LCD-U-221028
Availability: In stock

About this item

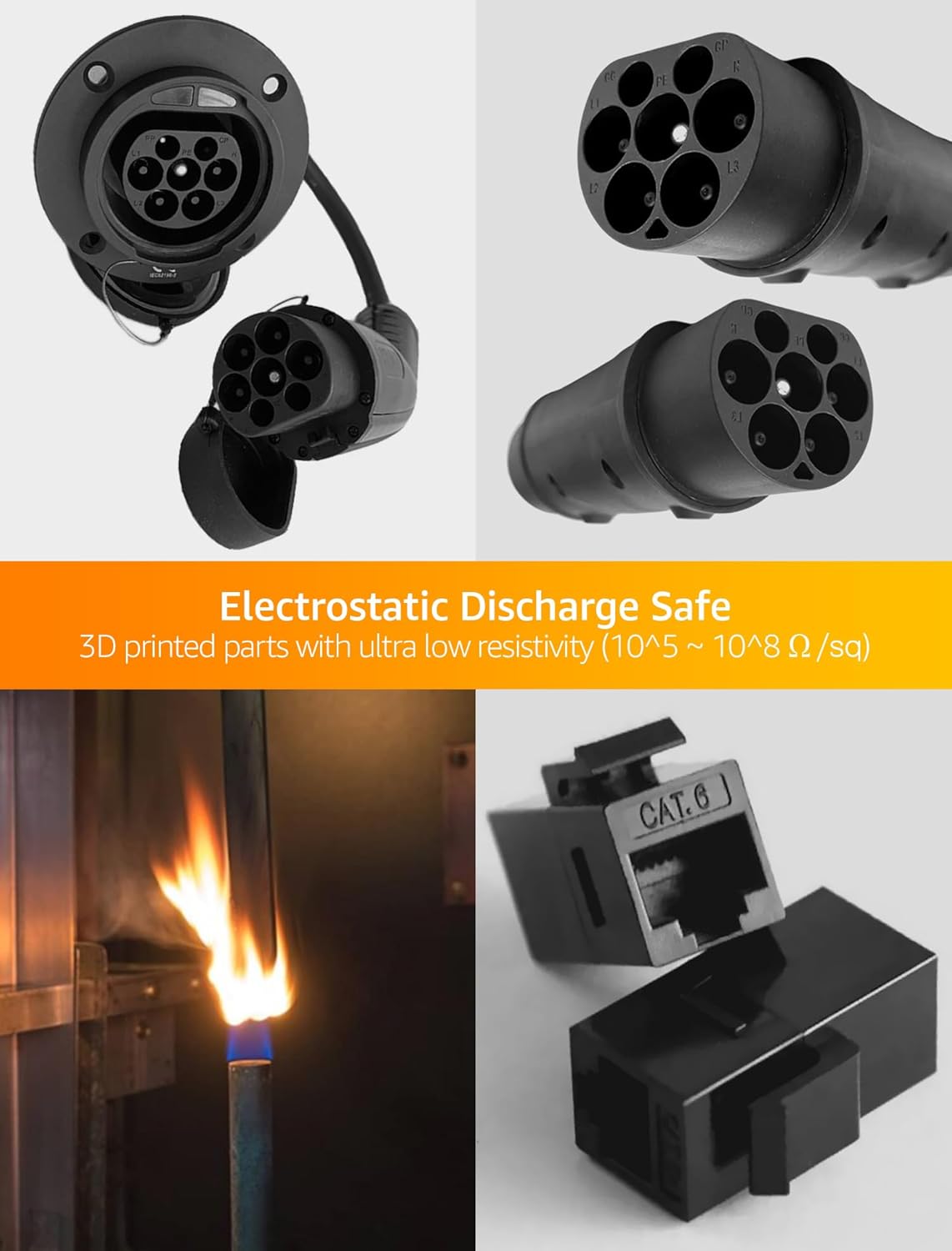

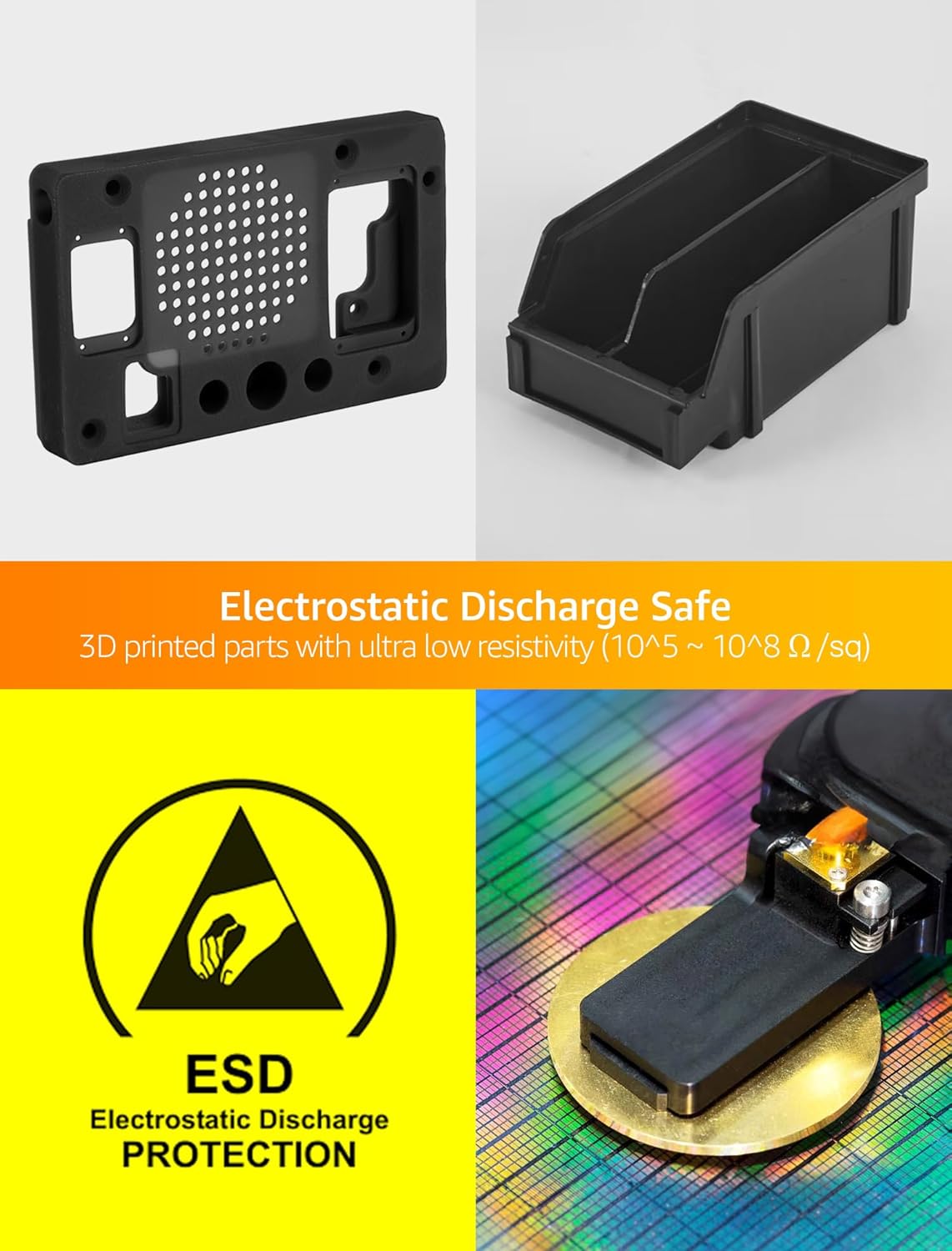

[Electrostatic Discharge Safe] Low resistivity (10^5 ~ 10^8) for electrostatic discharge safe 3D printing parts

[Non-Flammability] Pass UL94 V-0 non-flammability requirements and FST (AITM2-0002, AITM2-0007, AITM3-0005)

[Tough & Durable] 900 MPa tensile and 940 MPa flexural modulus with 20% elongation at break.

[Low Viscosity for 16um Precision] Very low viscosity for extremely high-resolution 3D printing

[Compatible to All LCD Printers] Compatible for all kinds of LCD 3D printers.

$126.90
$126.90
Subtotal: $126.90

Related Products

Vendor
Example product title
from $126.90
from $126.90
Vendor
Example product title
from $126.90
from $126.90
Vendor
Example product title
from $126.90
from $126.90
Vendor
Example product title
from $126.90
from $126.90
Vendor
Example product title
from $126.90
from $126.90
Vendor
Example product title
from $126.90
from $126.90
Vendor
Example product title
from $126.90
from $126.90
Vendor
Example product title
from $126.90
from $126.90
Vendor
Example product title
from $126.90
from $126.90
Vendor
Example product title
from $126.90
from $126.90

Product details

Manufacturer: ‎3DMaterials Co., Ltd.
Item Model Number: ‎ENGR-E46L
Product Dimensions: ‎7.48 x 6.69 x 10.63 inches
ASIN: B0D2CR3MXR
Date First Available: 2024-04-17

Product Description

11.0 lb / 2.2 lb / 1.1 lb

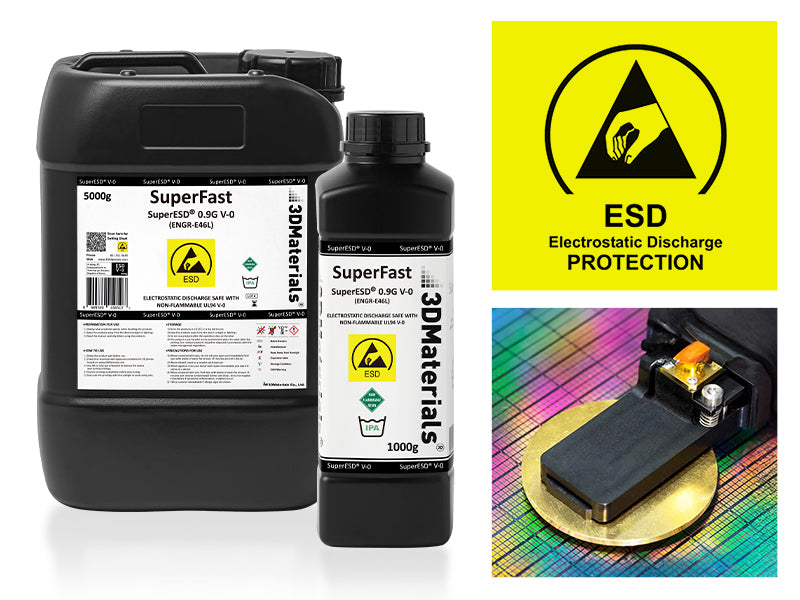

SuperESD 0.9 GPa UL94 V-0

[Electrostatic Discharge Safe] Low resistivity (10^5 ~ 10^8) for electrostatic discharge safe 3D printing parts

[Non-Flammability] Pass UL94 V-0 non-flammability requirements and FST (AITM2-0002, AITM2-0007, AITM3-0005)

[Tough & Durable] 900 MPa tensile and 940 MPa flexural modulus with 20% elongation at break

[Low Viscosity for 16um Precision] Very low viscosity for extremely high-resolution 3D printing

11.0 lb / 2.2 lb

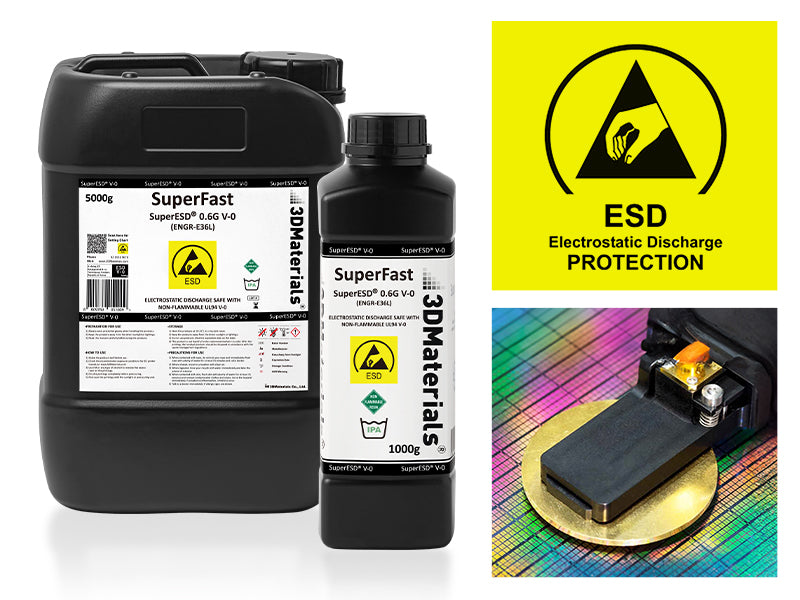

SuperESD 0.6 GPa UL94 V-0

[Electrostatic Discharge Safe] Low resistivity (10^5 ~ 10^8) for electrostatic discharge safe 3D printing parts

[Non-Flammability] Pass UL94 V-0 non-flammability requirements and FST (AITM2-0002, AITM2-0007, AITM3-0005)

[Tough & Durable] 600 MPa tensile and 620 MPa flexural modulus with 25% elongation at break

[Low Viscosity for 16um Precision] Very low viscosity for extremely high-resolution 3D printing

11.0 lb / 2.2 lb

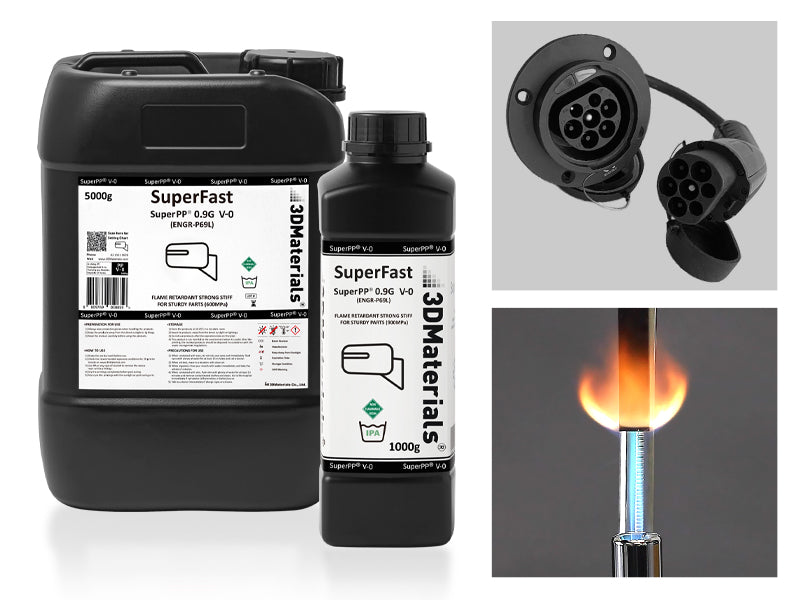

SuperPP 0.9G V-0

[Non-Flammability] Pass UL94 V-0 non-flammability requirements and FST (AITM2-0002, AITM2-0007, AITM3-0005)

[Tough & Durable] 900 MPa tensile and 940 MPa flexural modulus with 29% elongation at break

[Low Viscosity for 16um Precision] Very low viscosity for extremely high-resolution 3D printing

[Deep Black and White] Deep black and solid white with SuperColor high concentration pigments

11.0 lb / 2.2 lb

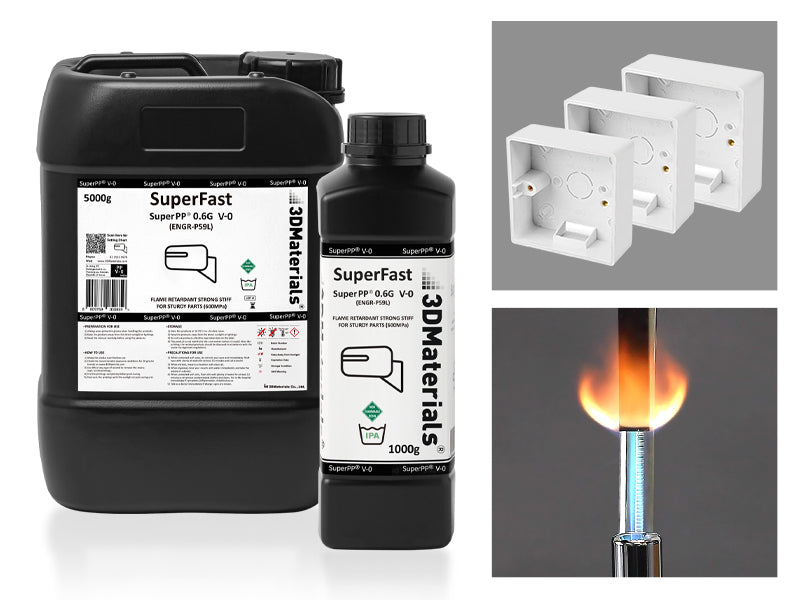

SuperPP 0.6G V-0

[Non-Flammability] Pass UL94 V-0 non-flammability requirements and FST (AITM2-0002, AITM2-0007, AITM3-0005)

[Tough & Durable] 600 MPa tensile and 620 MPa flexural modulus with 39% elongation at break

[Low Viscosity for 16um Precision] Very low viscosity for extremely high-resolution 3D printing

[Deep Black and White] Deep black and solid white with SuperColor high concentration pigments

11.0 lb / 2.2 lb / 1.1 lb

SuperHDT V-0

[Non-Flammability] Pass UL94 V-0 non-flammability requirements and FST (AITM2-0002, AITM2-0007, AITM3-0005)

[Heat Deflection Temperature 464 °F] Highest heat deflection temperature of 464 °F in the world

[User Guide #1 Remelting Resin] Please check the color before use, warm the bottle at 140°F for an hour or 120°F for couple of hours

[User Guide #2 Post-curing] Post-curing by 20mW/cm2 395nm ~ 405nm LED light for 10 minutes, and heating up the print in 176°F oven for one hour

11.0 lb / 2.2 lb

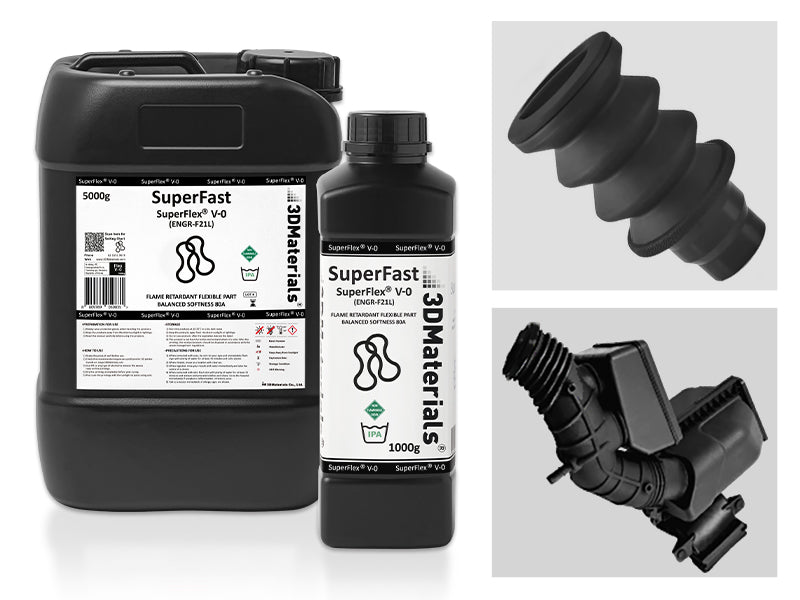

SuperFlex UL94 V-0

[Non-Flammability] Pass UL94 V-0 non-flammability requirements and FST (AITM2-0002, AITM2-0007, AITM3-0005)

[Balanced Softness and Strength] Balanced softness with strength to simulate rubber or TPU for hard flexible prototypes

[80A Shore Hardness] Well-suited for cushioning, damping and shock absorption with non-flammability

[Compatible to All LCD Printers] Compatible for all kinds of LCD 3D printers

Choosing softness & post-processing, non-flammable testing, and coloring

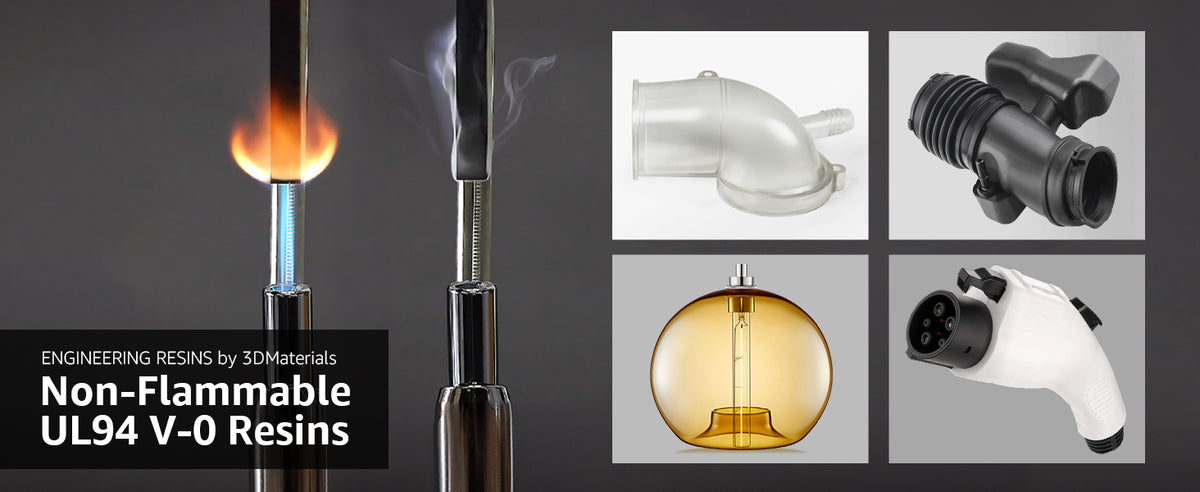

NON-FLAMMABILITY TEST FOR UL94 V-0 RATING

V-0 Series of Flex, PP, and ESD Pass UL94 V-0 Non-Flammability Test

The halogen-free, flame-retardant oligomer synthesized by 3DMaterials enables SuperFlex V-0, SuperPP V-0, SuperESD V-0, and SuperHDT V-0 to meet UL94 V-0 flammability requirements (ASTM D3801, AITM2). SuperFlex V-0 balances softness and strength to simulate rubber or TPU. SuperPP V-0 series has a modulus of 0.6 ~ 0.9 GPa and up to 35% elongation at break. SuperESD V-0 has low surface resistivity (10^8 Ohm) for ESD safety. SuperHDT V-0 achieves the highest heat deflection temperature of 464°F.

AMBER PENDENT LIGHT COVER by SUPERHDT V-0

Honey-hued pendant cover 3D printed in SuperHDT, 464°F HDT, UL94 V-0 rated.

This pendant light cover, with a rich honey-saturated hue, was 3D printed using SuperHDTresin. Engineered for durability, SuperHDToffers an impressive heat deflection temperature of 464°F and meets the UL94 V-0 non-flammability standard, ensuring both aesthetic appeal and enhanced safety for lighting applications.

COLORING SUPERPP & SUPERHDT

Deep black, solid white, and brilliant colors with a few drops of SuperColor

SuperElastic & SuperFlex are transparent and can be pigmented to create a variety of colors. SuperColor contains 10 times more pigment than conventional coloring agents, delivering deep black and solid white colors. Red, yellow, blue (primary colors) and orange, green, violet (secondary colors) are available, along with deep black and solid white. SuperColor is compatible with all SuperFast series, including SuperPP, SuperFlex, SuperElastic, SuperRigid, as well as other brands.
  • A

    The settings chart is available at the end of this page, or you can download it by scanning QR code on the label of bottle.

  • A

    Use alcohol to remove excess resin from the surface and dry the prints completely. Post-cure them using any brand’s curing machine for 20 minutes. If the surface is still tacky, cure it underwater (without oxygen) for another 10 minutes.

  • A

    The surface resistivity is 10^7 ~ 10^9 ohms/sq. Both the UL94 V-0 certificate and the resistivity measurement are available as Amazon product documents.
