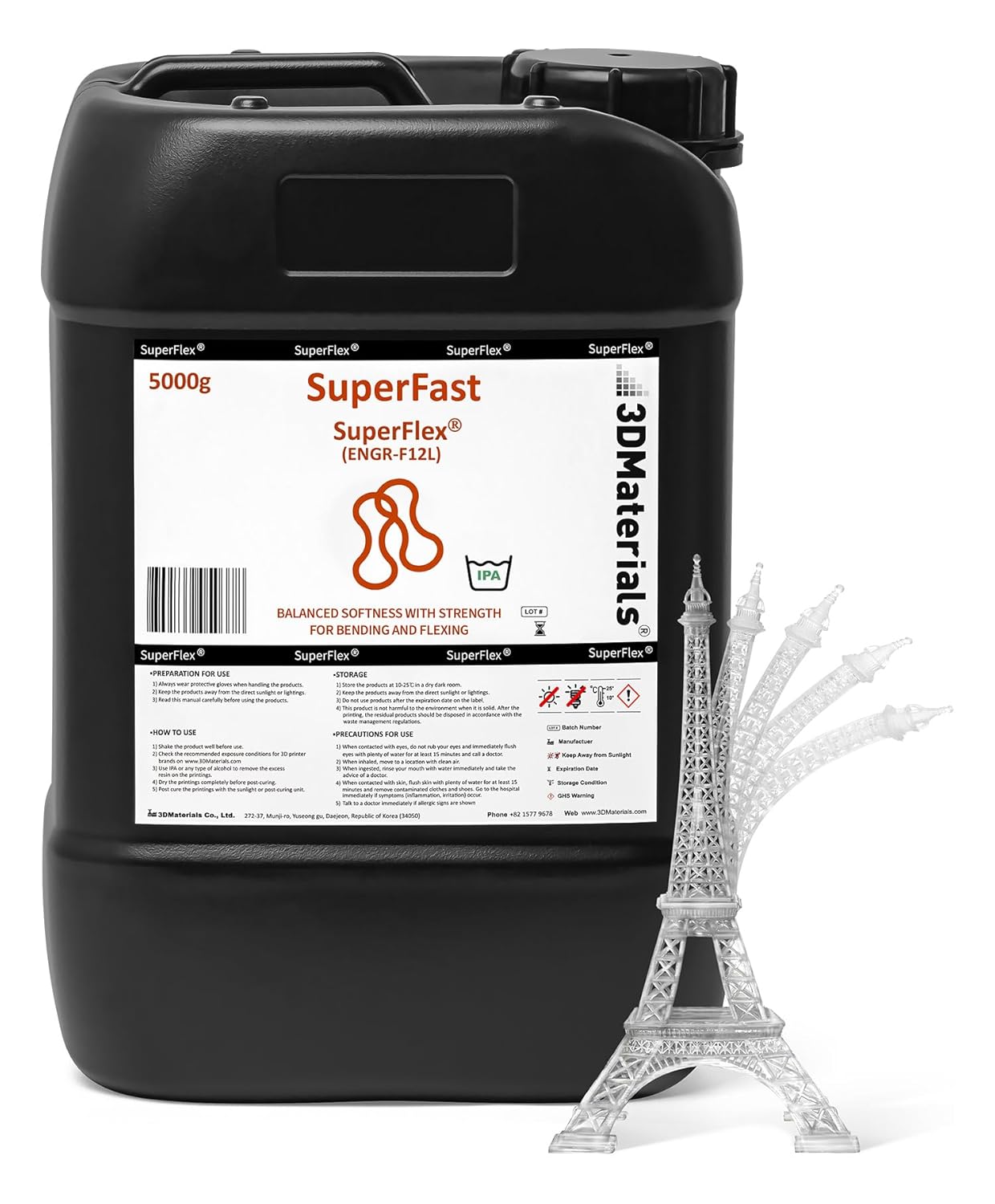

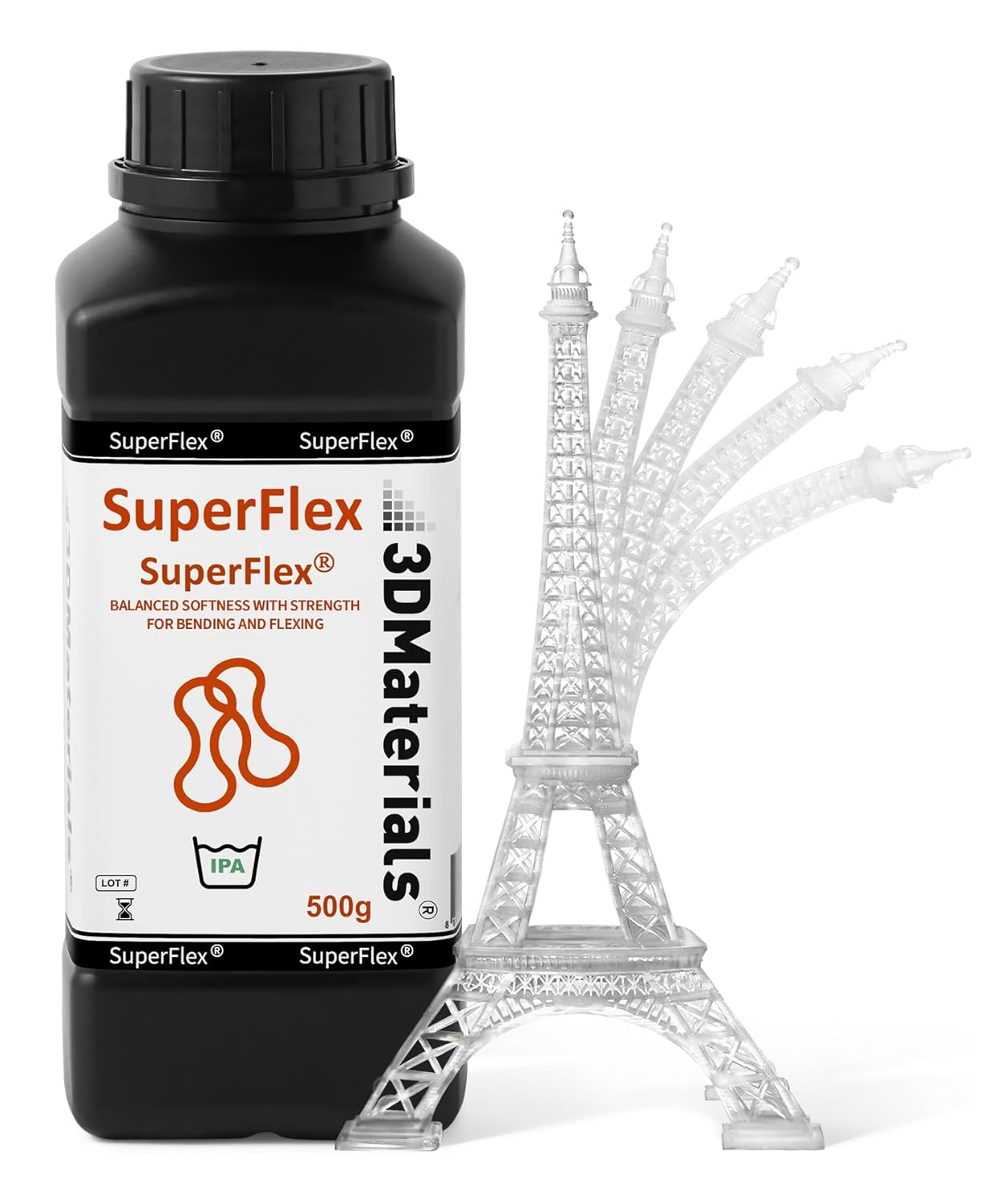

SuperFlex 3D Printer Resin, Softness 80A Simulating Flexible Rubber, Made in Korea by 3DMaterials
SuperFlex 3D Printer Resin, Softness 80A Simulating Flexible Rubber, Made in Korea by 3DMaterials
SuperFlex 3D Printer Resin, Softness 80A Simulating Flexible Rubber, Made in Korea by 3DMaterials
SuperFlex 3D Printer Resin, Softness 80A Simulating Flexible Rubber, Made in Korea by 3DMaterials
SuperFlex 3D Printer Resin, Softness 80A Simulating Flexible Rubber, Made in Korea by 3DMaterials
SuperFlex 3D Printer Resin, Softness 80A Simulating Flexible Rubber, Made in Korea by 3DMaterials
SuperFlex 3D Printer Resin, Softness 80A Simulating Flexible Rubber, Made in Korea by 3DMaterials
SuperFlex 3D Printer Resin, Softness 80A Simulating Flexible Rubber, Made in Korea by 3DMaterials
SuperFlex 3D Printer Resin, Softness 80A Simulating Flexible Rubber, Made in Korea by 3DMaterials
SuperFlex 3D Printer Resin, Softness 80A Simulating Flexible Rubber, Made in Korea by 3DMaterials

SuperFlex 3D Printer Resin, Softness 80A Simulating Flexible Rubber, Made in Korea by 3DMaterials

$29.80
$29.80
Color: Clear
Size: 500g
Vendor: 3DMaterials
SKU: 3DP-ENG-F12L-0.5-H-LCD-U-210101
Availability: In stock

About this item

  • [Fast Printing] Printing 50um layer in 1.7 sec with monochrome LCD 3D printers, saving on time and electricity bill.
  • [Enhance Productivity] Super fast printing enhance the productivity of 3D printing farm by at least 40% and up.

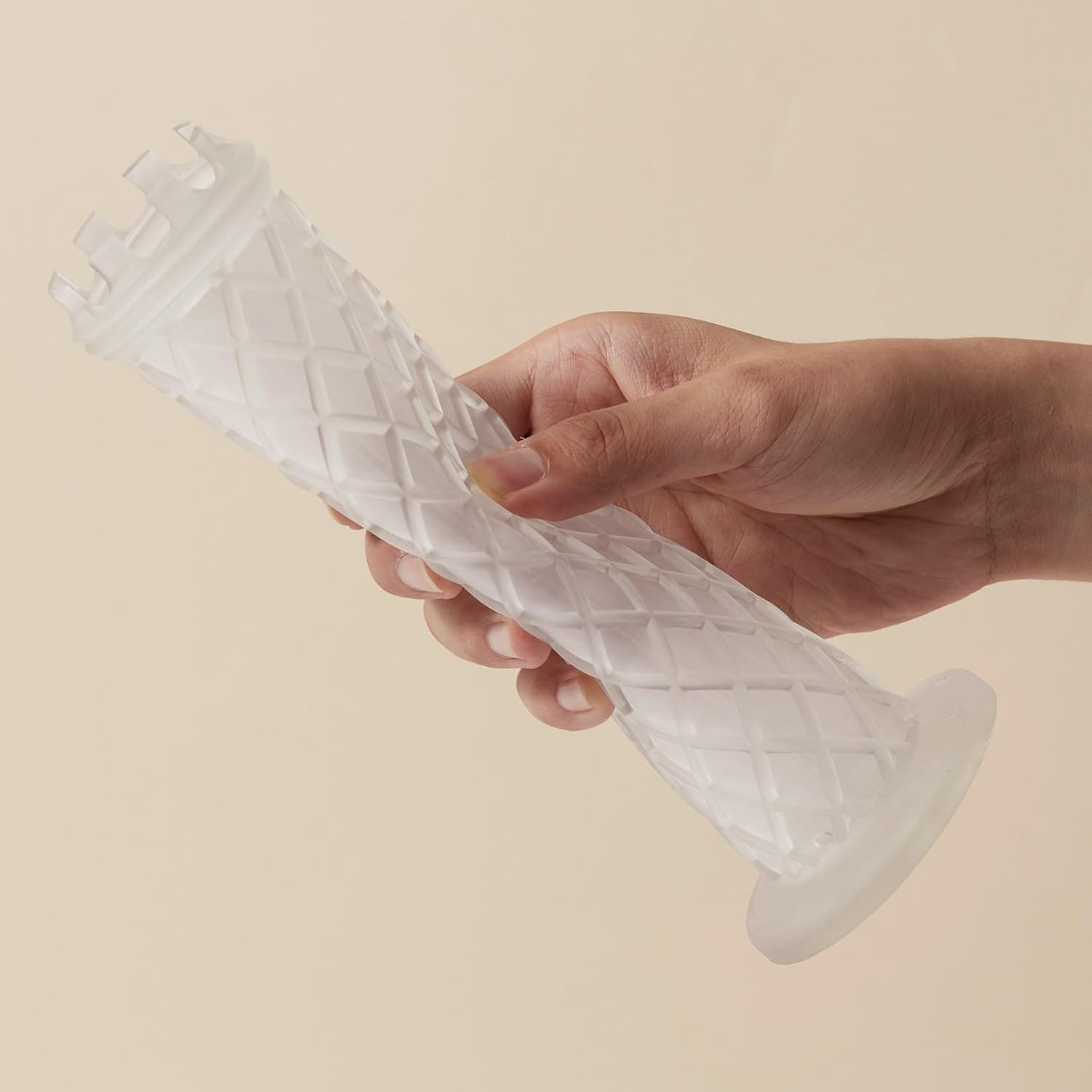

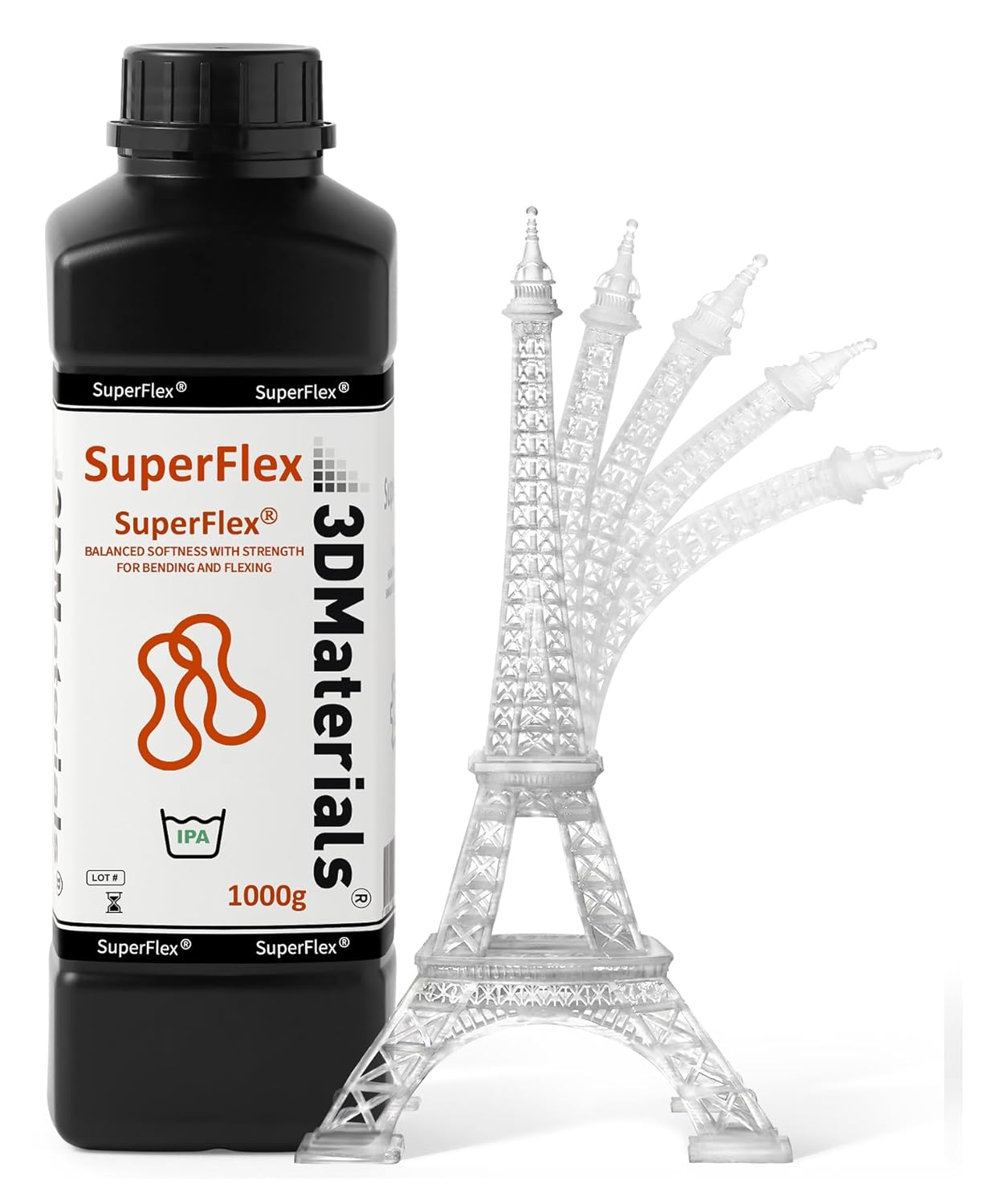

  • [Balanced Softness and Strength] SuperFlex has balanced softness with strength to simulate rubber or TPU for hard flexible (80A Shore) prototypes.
  • [80A Shore Hardness] SuperFlex has 80A Shore durometer and 100% elongation at break well-suited for cushioning, damping and shock absorption.
  • [ISO 10993-5] Properly cleaned and fully post cured SuperFlex prints pass ISO 10993-5 test.
$29.80
$29.80
Subtotal: $29.80

Related Products

Vendor
Example product title
from $29.80
from $29.80
Vendor
Example product title
from $29.80
from $29.80
Vendor
Example product title
from $29.80
from $29.80
Vendor
Example product title
from $29.80
from $29.80
Vendor
Example product title
from $29.80
from $29.80
Vendor
Example product title
from $29.80
from $29.80
Vendor
Example product title
from $29.80
from $29.80
Vendor
Example product title
from $29.80
from $29.80
Vendor
Example product title
from $29.80
from $29.80
Vendor
Example product title
from $29.80
from $29.80

Product details

Manufacturer: 3DMaterials Co., Ltd.
Item Model Number: ENGR-F12L
Product Dimensions: ‎3.35 x 3.35 x 10.04 inches
ASIN: B0CG6TNYWF
Date First Available: 2021-01-01

Product Description

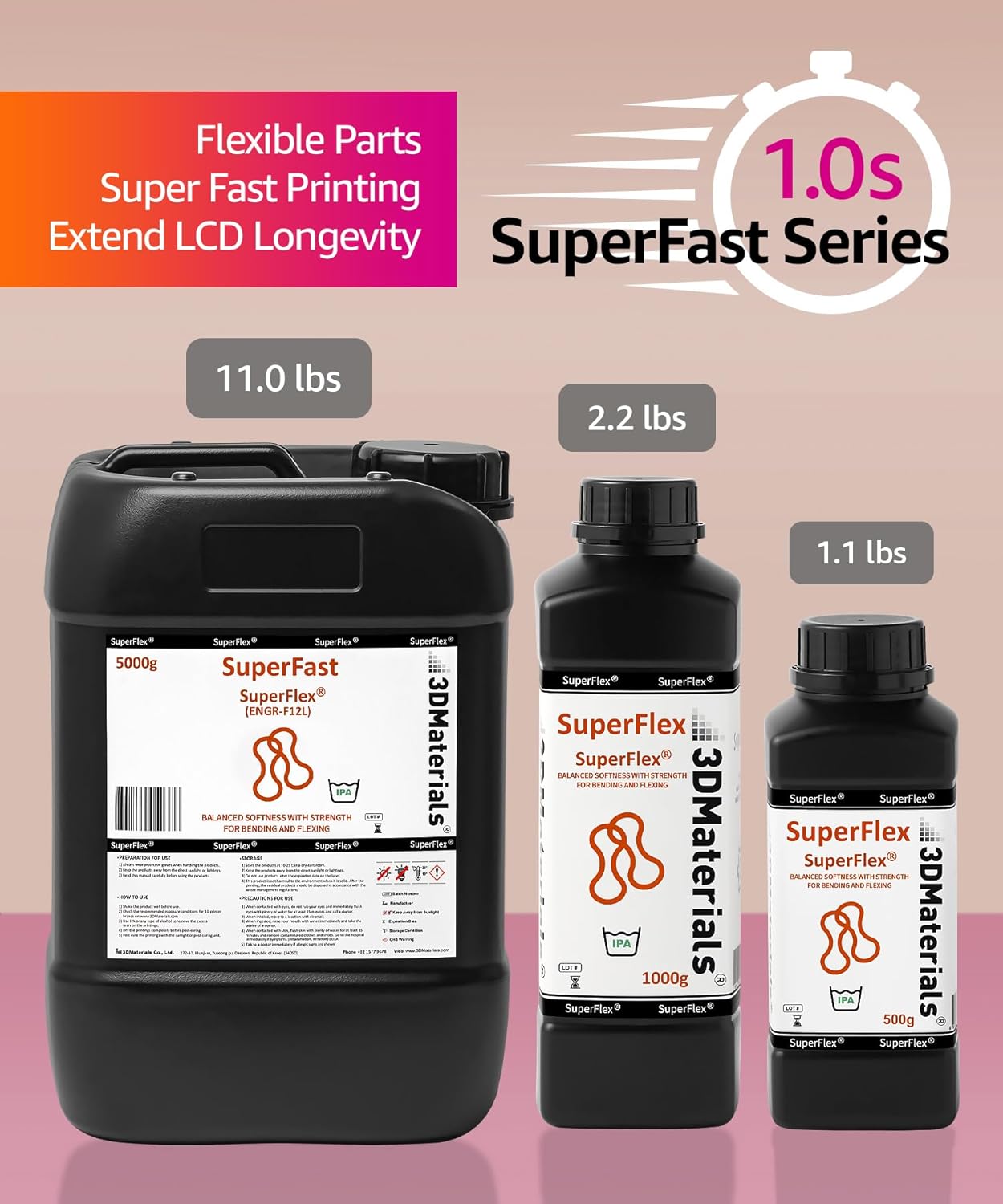

11.0 lb / 2.2 lb / 1.1 lb

SuperFlex 80A

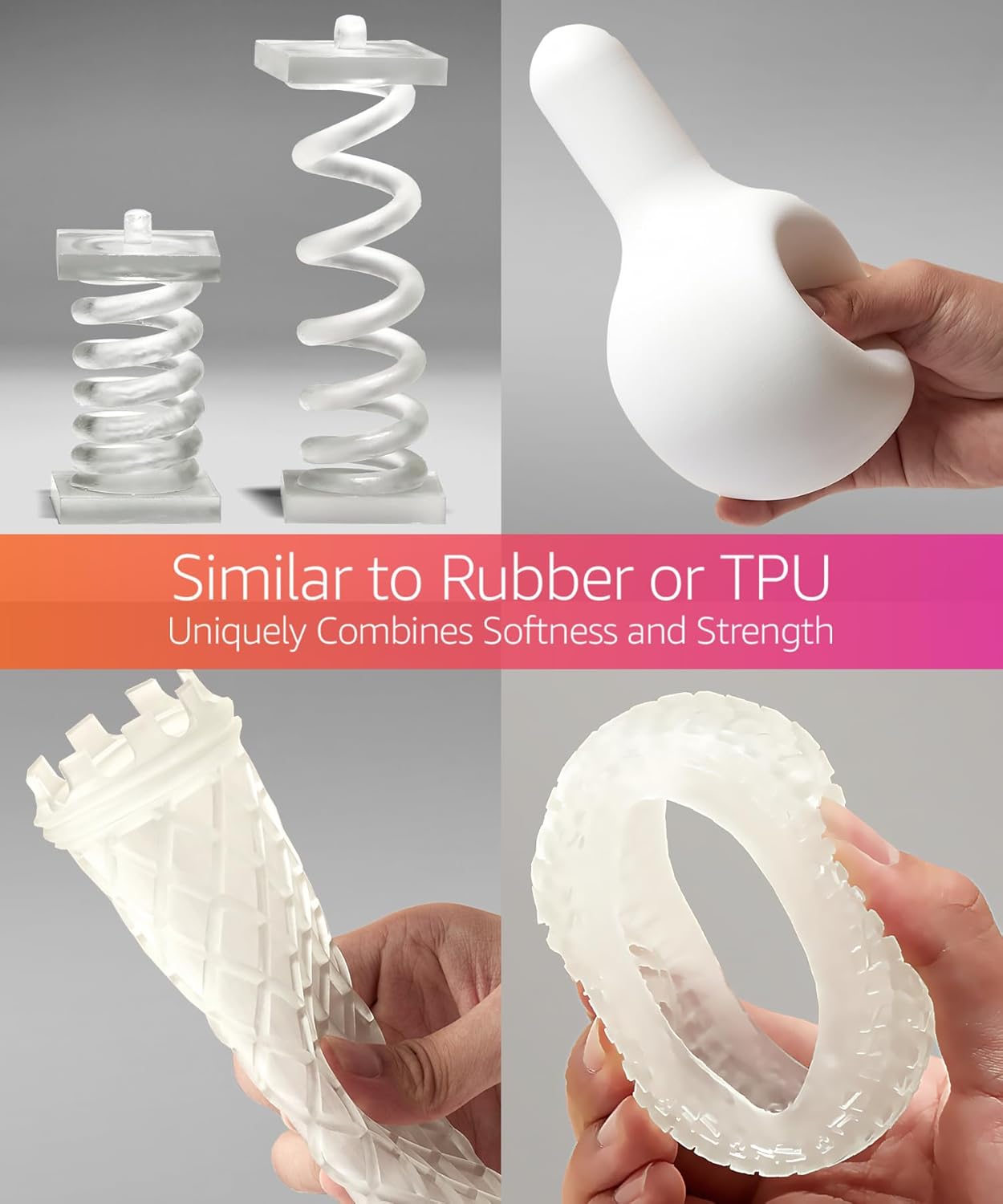

[Balanced Softness and Strength] SuperFlex has balanced softness with strength to simulate rubber or TPU for hard flexible (80A Shore) prototypes

[80A Shore Hardness] SuperFlex has 80A Shore durometer and 100% elongation at break well-suited for cushioning, damping and shock absorption

[Fast Printing] Printing 50um layer in 1.7 sec with monochrome LCD 3D printers, saving on time and electricity bill

[ISO 10993-5] Properly cleaned and fully post cured SuperFlex prints pass ISO 10993-5 test

11.0 lb / 2.2 lb

SuperFlex UL94 V-0

[Non-Flammability] Pass UL94 V-0 non-flammability requirements and FST (AITM2-0002, AITM2-0007, AITM3-0005)

[Balanced Softness and Strength] Balanced softness with strength to simulate rubber or TPU for hard flexible prototypes

[80A Shore Hardness] Well-suited for cushioning, damping and shock absorption with non-flammability

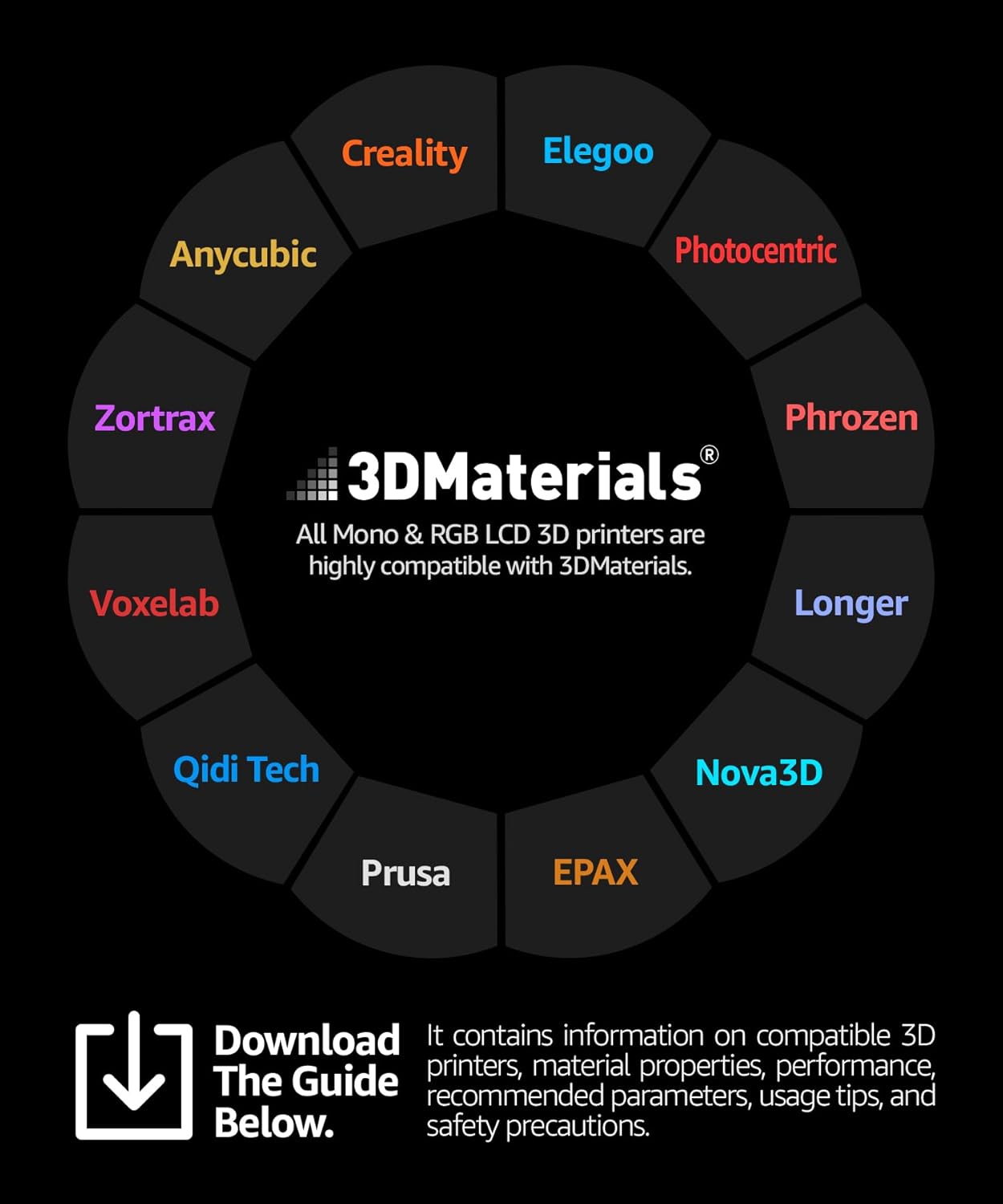

[Compatible to All LCD Printers] Compatible for all kinds of LCD 3D printers

11.0 lb / 2.2 lb / 1.1 lb

SuperElastic 60A

[60A Shore Hardness] 60A Shore durometer and 46% elongation at break well-suited for 3D printing human skins, faces, buttons, hairs

[Balanced Softness with Resilience] Balanced softness with resilience to simulate two component silicone prototypes

[Fast Printing] Printing 50um layer in 1.3 sec with monochrome LCD 3D printers, saving on time and electricity bill

[ISO 10993-5] Properly cleaned and fully post cured SuperElastic prints pass ISO 10993-5 test

Choosing softness & post-processing, non-flammable testing, and coloring

SOFTNESS OF FLEXIBLE RESINS

Shore 60A to 80A: Choosing the right flexibility for your application

Flexible resins have a Shore hardness range of 60A to 80A, making them well-suited for 3D printing human skin, faces, buttons, hair, cushions, dampers, and shock absorbers. Super-fast printing at 50μm layer thickness in 1.3 seconds saves both total running time and electricity costs. This fast printing boosts the productivity of a 3D printing farm by at least 40%. Properly cleaned and fully post-cured prints pass the ISO 10993-5 cytotoxicity biocompatibility test.

NON-FLAMMABILITY TEST FOR UL94 V-0 RATING

Shore 80A 3D printed parts meet UL94 V-0 non-flammability requirements and FST

The halogen-free, flame-retardant oligomer synthesized by 3DMaterials enables SuperFlex V-0 to meet UL94 V-0 flammability requirements and FST standards (AITM2-0002, AITM2-0007, AITM3-0005). SuperFlex V-0 combines balanced softness and strength, simulating rubber or TPU for hard flexible prototypes, making it ideal for cushioning, damping, and shock absorption with non-flammability.

COLORING SuperElastic & SuperFlex

Deep black, solid white, and brilliant colors with a few drops of SuperColor

SuperElastic & SuperFlex are transparent and can be pigmented to create a variety of colors. SuperColor contains 10 times more pigment than conventional coloring agents, delivering deep black and solid white colors. Red, yellow, blue (primary colors) and orange, green, violet (secondary colors) are available, along with deep black and solid white. SuperColor is compatible with all SuperFast series, including SuperPP, SuperFlex, SuperElastic, SuperRigid, as well as other brands.
  • A

    The settings chart is available at the end of this page, or you can download it by scanning QR code on the label of bottle.

  • A

    Use alcohol to remove excess resin from the surface and dry the prints completely. Post-cure them using any brand’s curing machine for 20 minutes in air. One tip is the underwater (without oxygen) curing for another 10 minutes gives better result.

  • A

    Add 4 drops of Black or 8 drops of White per 100 mL (gram) of resin to achieve standard deep black or solid white colors. Use a small scale and magnetic stirrer for even mixing. Adding too much SuperColor may result in printing failure.

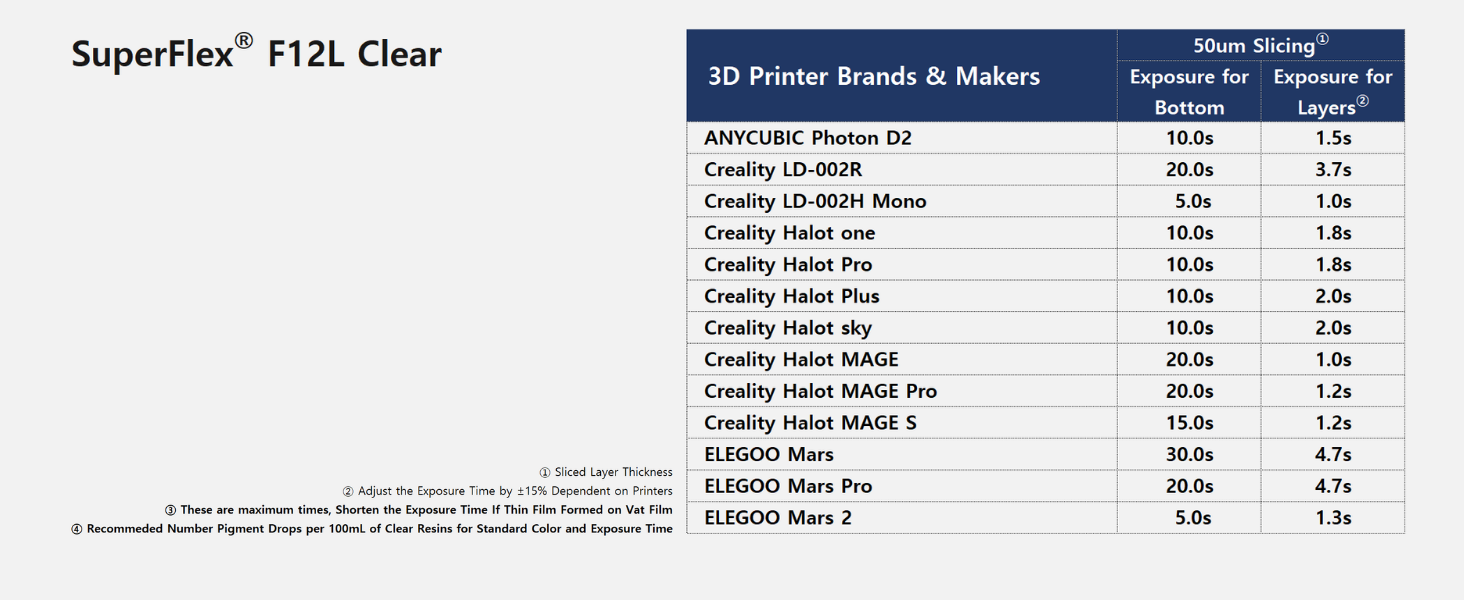

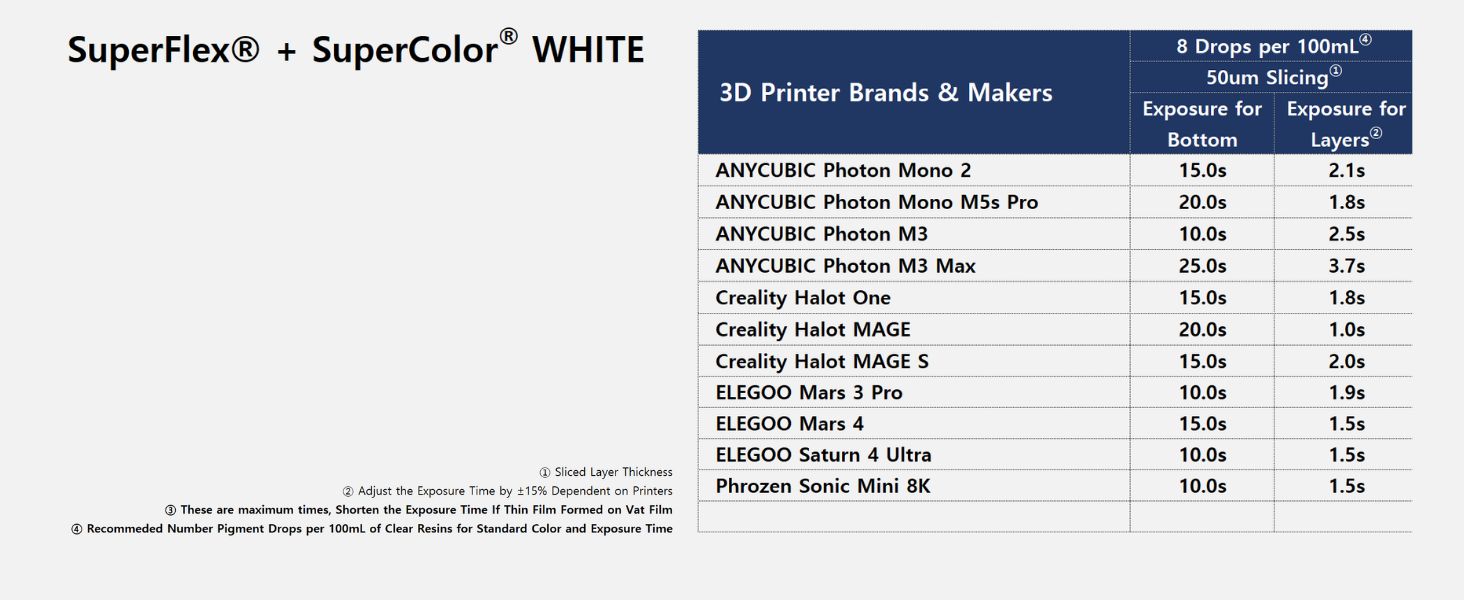

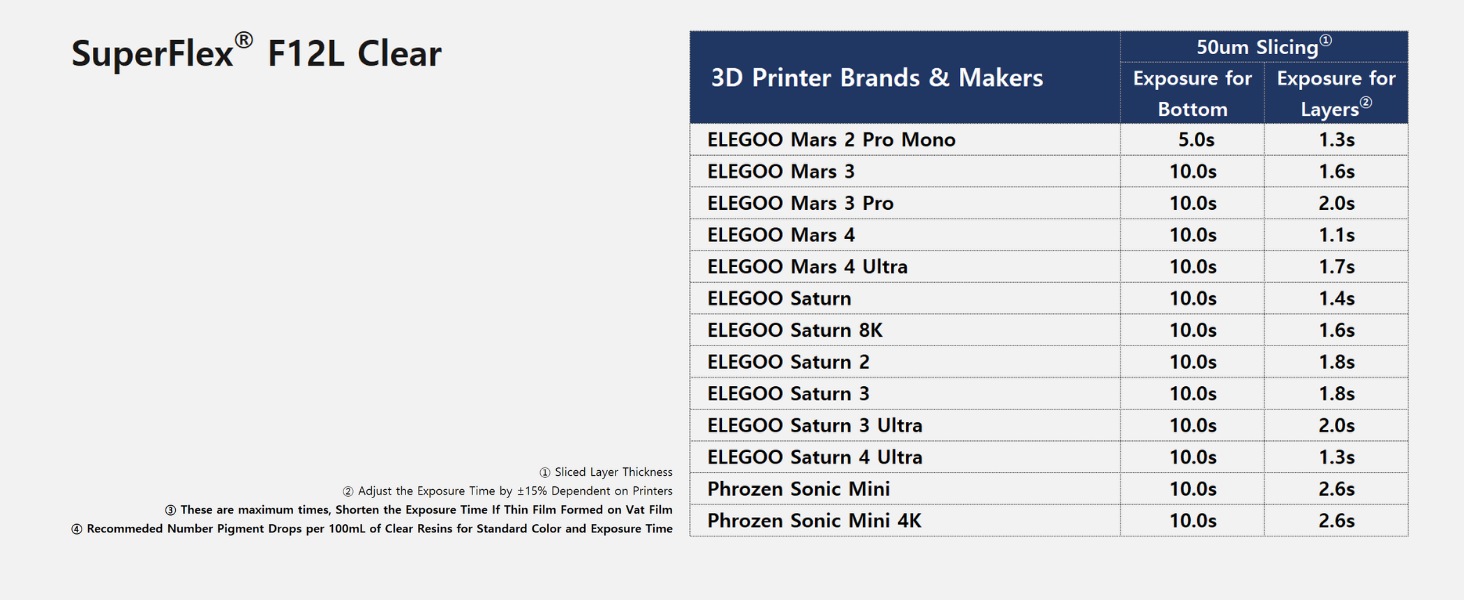

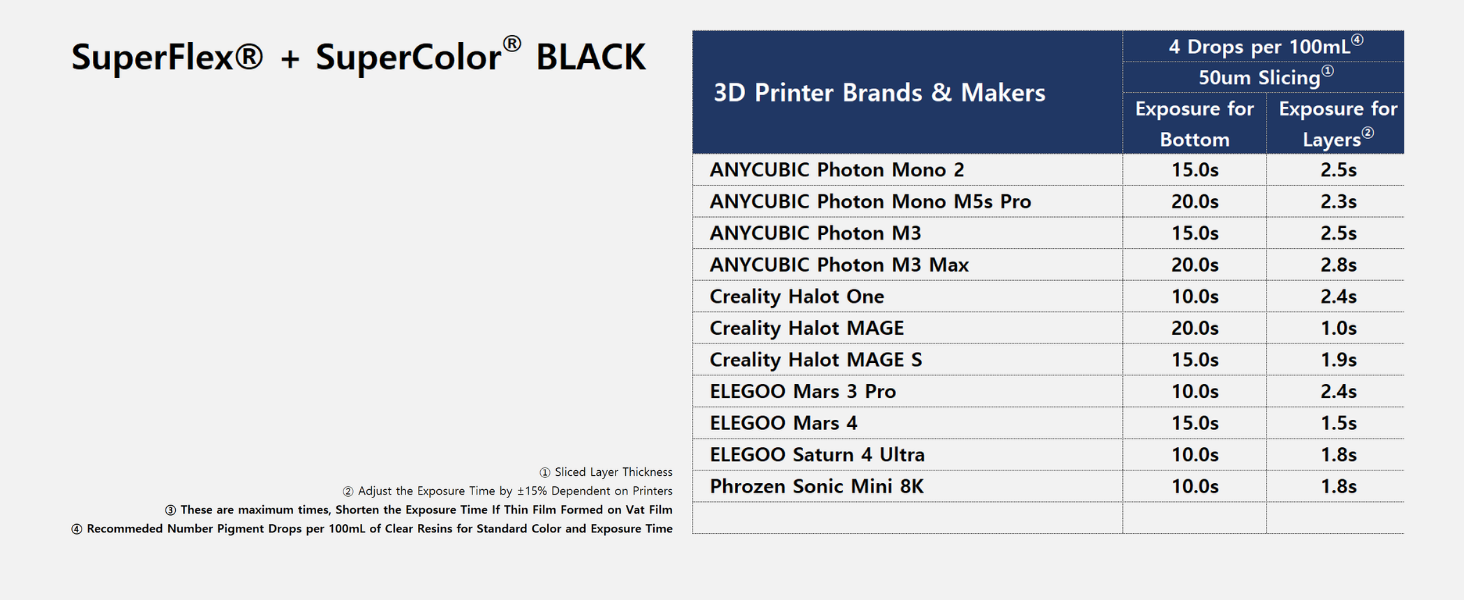

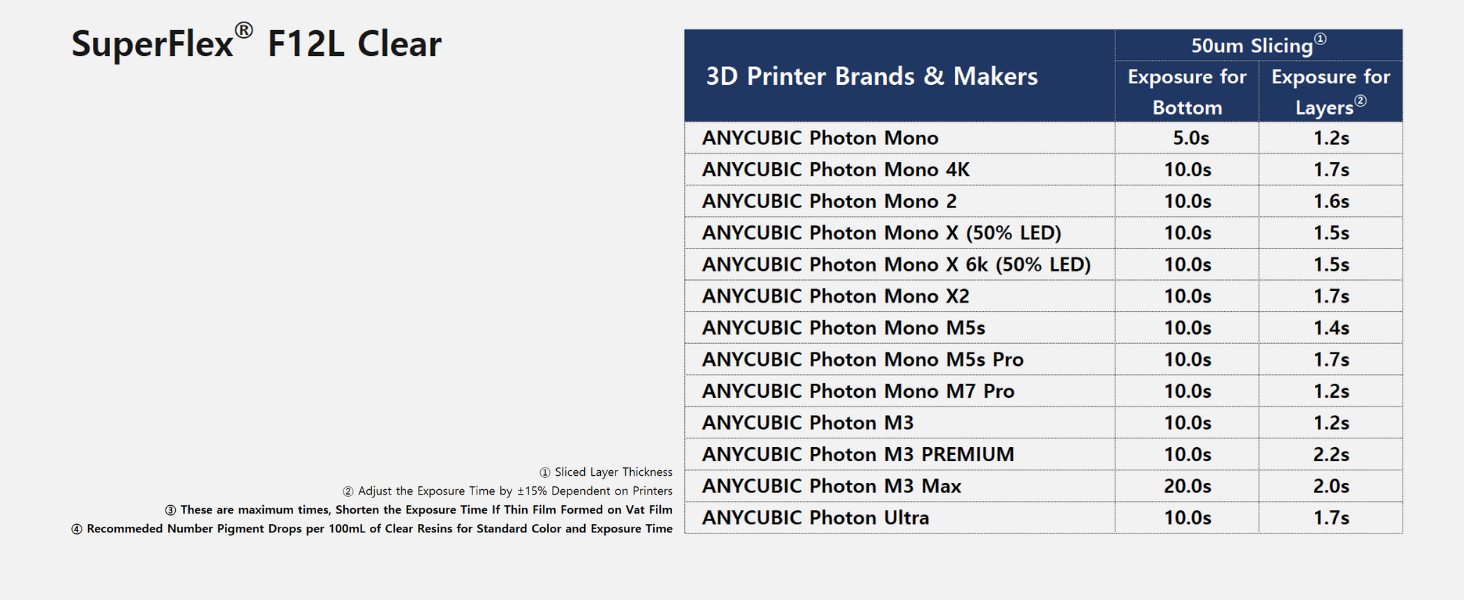

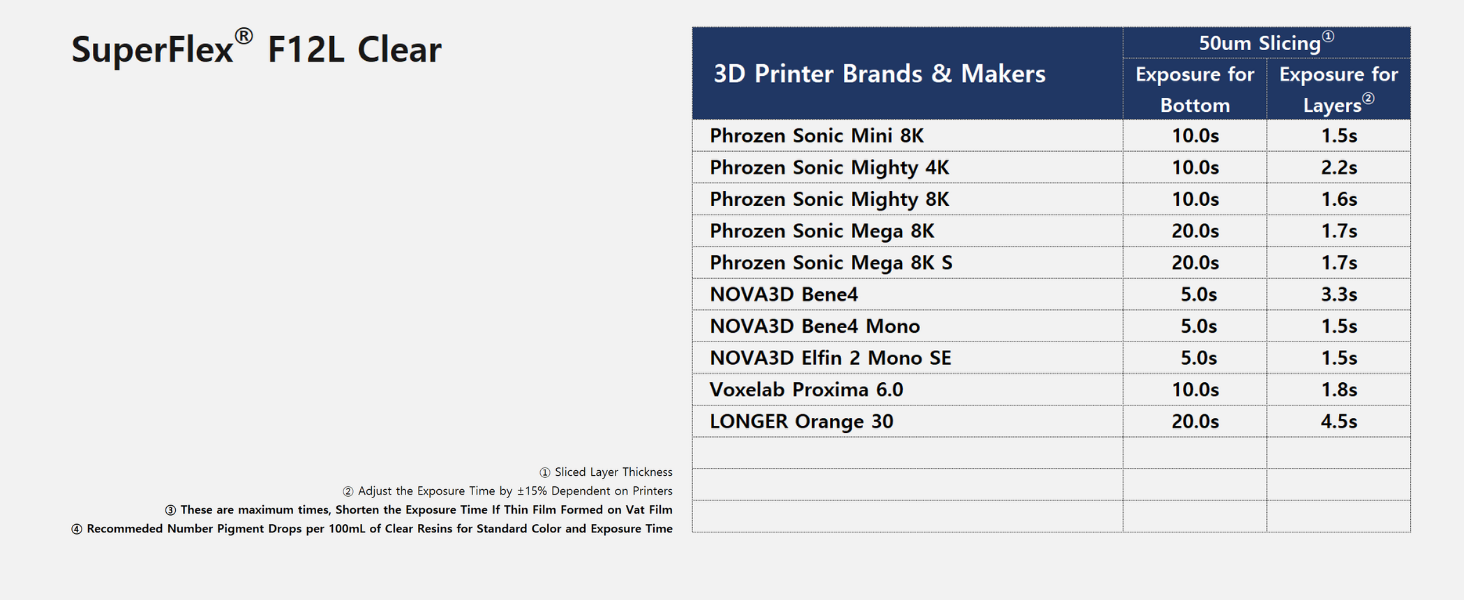

RECOMMENDED LAYER EXPOSURE SETTINGS FOR 3D PRINTERS

These settings were measured and tested for a 50μm layer thickness. Adjust the exposure time by ±15% based on your printer's conditions. Colored prints were tested using the recommended number of pigment drops per 100mL of clear resin.
