SuperHDT V-0 3D Printer Resin, Flame-Retardant Parts with Highest Heat Deflection Temperature 464°F (240°C), Made in Korea by 3DMaterials
SuperHDT V-0 3D Printer Resin, Flame-Retardant Parts with Highest Heat Deflection Temperature 464°F (240°C), Made in Korea by 3DMaterials
SuperHDT V-0 3D Printer Resin, Flame-Retardant Parts with Highest Heat Deflection Temperature 464°F (240°C), Made in Korea by 3DMaterials
SuperHDT V-0 3D Printer Resin, Flame-Retardant Parts with Highest Heat Deflection Temperature 464°F (240°C), Made in Korea by 3DMaterials
SuperHDT V-0 3D Printer Resin, Flame-Retardant Parts with Highest Heat Deflection Temperature 464°F (240°C), Made in Korea by 3DMaterials
SuperHDT V-0 3D Printer Resin, Flame-Retardant Parts with Highest Heat Deflection Temperature 464°F (240°C), Made in Korea by 3DMaterials
SuperHDT V-0 3D Printer Resin, Flame-Retardant Parts with Highest Heat Deflection Temperature 464°F (240°C), Made in Korea by 3DMaterials
SuperHDT V-0 3D Printer Resin, Flame-Retardant Parts with Highest Heat Deflection Temperature 464°F (240°C), Made in Korea by 3DMaterials
SuperHDT V-0 3D Printer Resin, Flame-Retardant Parts with Highest Heat Deflection Temperature 464°F (240°C), Made in Korea by 3DMaterials

SuperHDT V-0 3D Printer Resin, Flame-Retardant Parts with Highest Heat Deflection Temperature 464°F (240°C), Made in Korea by 3DMaterials

$44.80
$44.80
Color: Amber
Size: 500g
Vendor: 3DMaterials Co., Ltd.
SKU: 3DP-ENG-T33L-0.5-A-LCD-U-240810
Availability: In stock

About this item

[Non-Flammability] Pass UL94 V-0 non-flammability requirements and FST (AITM2-0002, AITM2-0007, AITM3-0005)

[Heat Deflection Temperature 464 °F] Highest heat deflection temperature of 464 °F in the world.

[User Guide #1 Remelting Resin] Please check the color before use, warm the bottle at 140°F for an hour or 120°F for couple of hours.

[User Guide #2 Post-curing] Post-curing by 20mW/cm2 395nm ~ 405nm LED light for 10 minutes, and heating up the print in 176°F oven for one hour.

[User Guide #3 Recoating] Surface recoating enhance the heat resistance and prevent the print from cracking beyond the deflection temperature.

$44.80
$44.80
Subtotal: $44.80

Related Products

Vendor
Example product title
from $44.80
from $44.80
Vendor
Example product title
from $44.80
from $44.80
Vendor
Example product title
from $44.80
from $44.80
Vendor
Example product title
from $44.80
from $44.80
Vendor
Example product title
from $44.80
from $44.80
Vendor
Example product title
from $44.80
from $44.80
Vendor
Example product title
from $44.80
from $44.80
Vendor
Example product title
from $44.80
from $44.80
Vendor
Example product title
from $44.80
from $44.80
Vendor
Example product title
from $44.80
from $44.80

Product details

Manufacturer: 3DMaterials Co., Ltd.
Item Model Number: ‎ENGR-T33
Product Dimensions: ‎6.69 x 7.48 x 10.63 inches
ASIN: B0DCT1T6ZY
Date First Available: 2024-09-01

From the brand

EGINEERING RESINS

EGINEERING RESINS
EGINEERING RESINS

EGINEERING RESINS

Visit the Store
Standard Resins

Standard Resins
Standard Resins

Standard Resins

Visit the Store
Consumables for 3D Printer

Consumables for 3D Printer

Visit the Store
Standard Resins

Standard Resins

Product Description

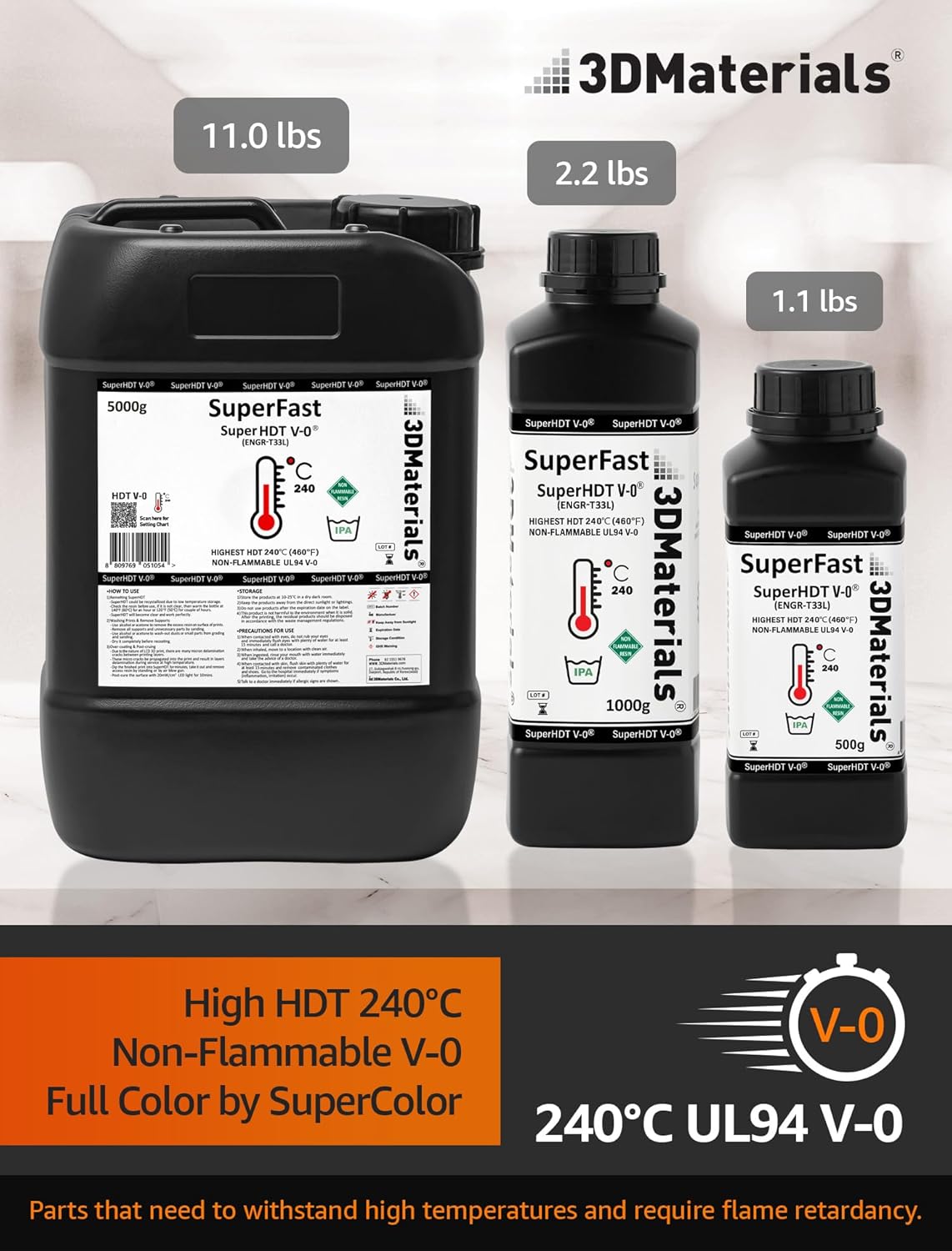

11.0 lb / 2.2 lb / 1.1 lb

SuperHDT V-0

[Non-Flammability] Pass UL94 V-0 non-flammability requirements and FST (AITM2-0002, AITM2-0007, AITM3-0005)

[Heat Deflection Temperature 464 °F] Highest heat deflection temperature of 464 °F in the world.

[User Guide #1 Remelting Resin] Please check the color before use, warm the bottle at 140°F for an hour or 120°F for couple of hours.

[User Guide #2 Post-curing] Post-curing by 20mW/cm2 395nm ~ 405nm LED light for 10 minutes, and heating up the print in 176°F oven for one hour.

11.0 lb / 2.2 lb

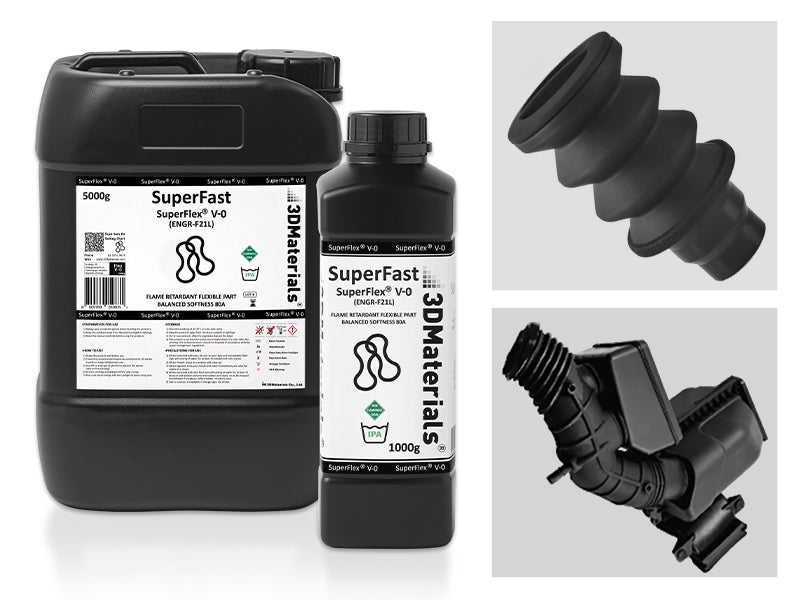

SuperFlex UL94 V-0

[Non-Flammability] Pass UL94 V-0 non-flammability requirements and FST (AITM2-0002, AITM2-0007, AITM3-0005)

[Balanced Softness and Strength] Balanced softness with strength to simulate rubber or TPU for hard flexible prototypes

[80A Shore Hardness] Well-suited for cushioning, damping and shock absorption with non-flammability

[Compatible to All LCD Printers] Compatible for all kinds of LCD 3D printers

11.0 lb / 2.2 lb

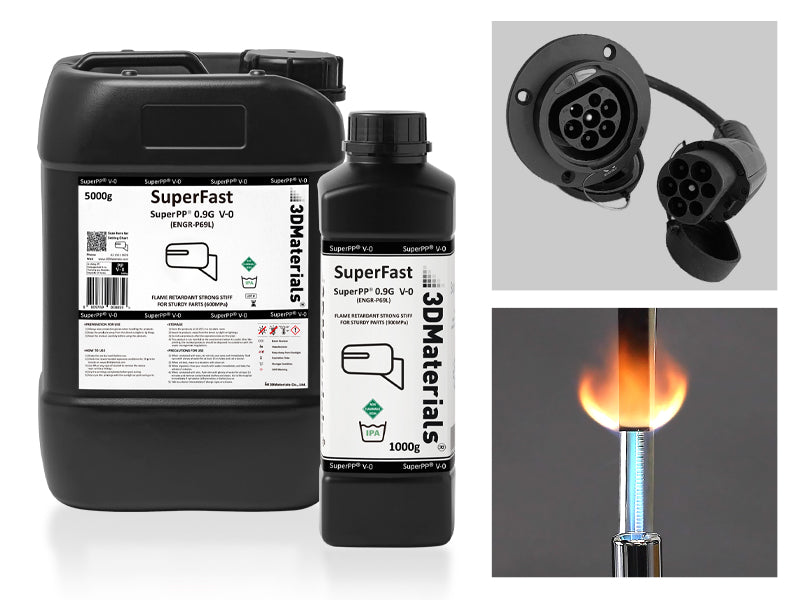

SuperPP 0.9G V-0

[Non-Flammability] Pass UL94 V-0 non-flammability requirements and FST (AITM2-0002, AITM2-0007, AITM3-0005)

[Tough & Durable] 900 MPa tensile and 940 MPa flexural modulus with 29% elongation at break

[Low Viscosity for 16um Precision] Very low viscosity for extremely high-resolution 3D printing

[Deep Black and White] Deep black and solid white with SuperColor high concentration pigments

11.0 lb / 2.2 lb

SuperPP 0.6G V-0

[Non-Flammability] Pass UL94 V-0 non-flammability requirements and FST (AITM2-0002, AITM2-0007, AITM3-0005)

[Tough & Durable] 600 MPa tensile and 620 MPa flexural modulus with 39% elongation at break

[Low Viscosity for 16um Precision] Very low viscosity for extremely high-resolution 3D printing

[Deep Black and White] Deep black and solid white with SuperColor high concentration pigments

11.0 lb / 2.2 lb

SuperESD 0.9 GPa UL94 V-0

[Electrostatic Discharge Safe] Low resistivity (10^5 ~ 10^8) for electrostatic discharge safe 3D printing parts

[Non-Flammability] Pass UL94 V-0 non-flammability requirements and FST (AITM2-0002, AITM2-0007, AITM3-0005)

[Tough & Durable] 900 MPa tensile and 940 MPa flexural modulus with 20% elongation at break

[Low Viscosity for 16um Precision] Very low viscosity for extremely high-resolution 3D printing

11.0 lb / 2.2 lb

SuperESD 0.6 GPa UL94 V-0

[Electrostatic Discharge Safe] Low resistivity (10^5 ~ 10^8) for electrostatic discharge safe 3D printing parts

[Non-Flammability] Pass UL94 V-0 non-flammability requirements and FST (AITM2-0002, AITM2-0007, AITM3-0005)

[Tough & Durable] 600 MPa tensile and 620 MPa flexural modulus with 25% elongation at break

[Low Viscosity for 16um Precision] Very low viscosity for extremely high-resolution 3D printing

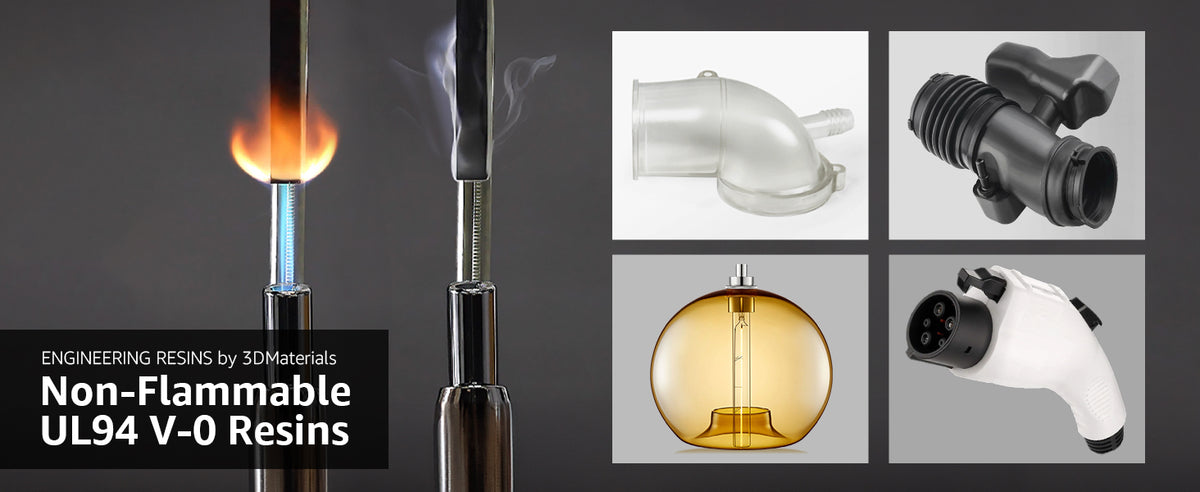

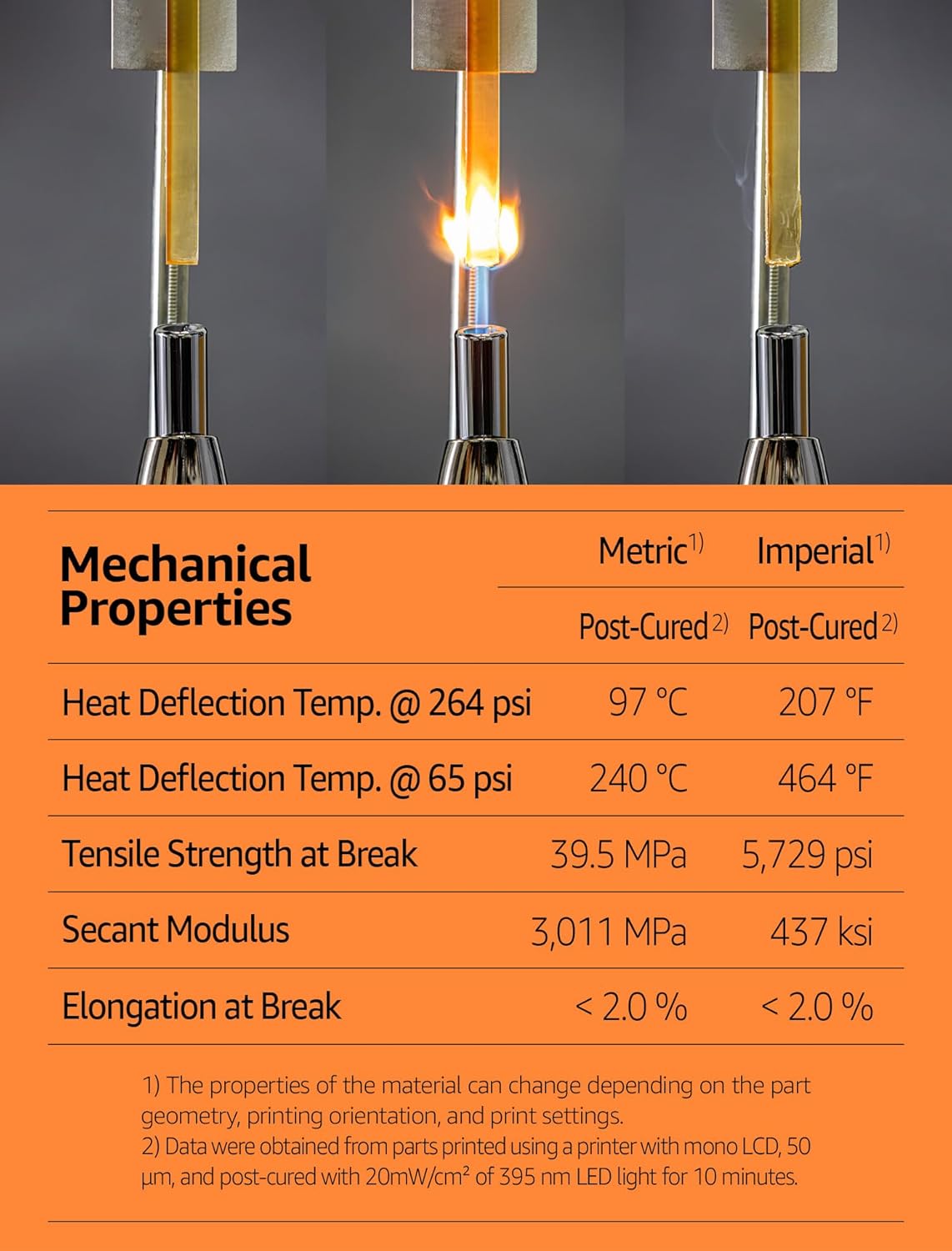

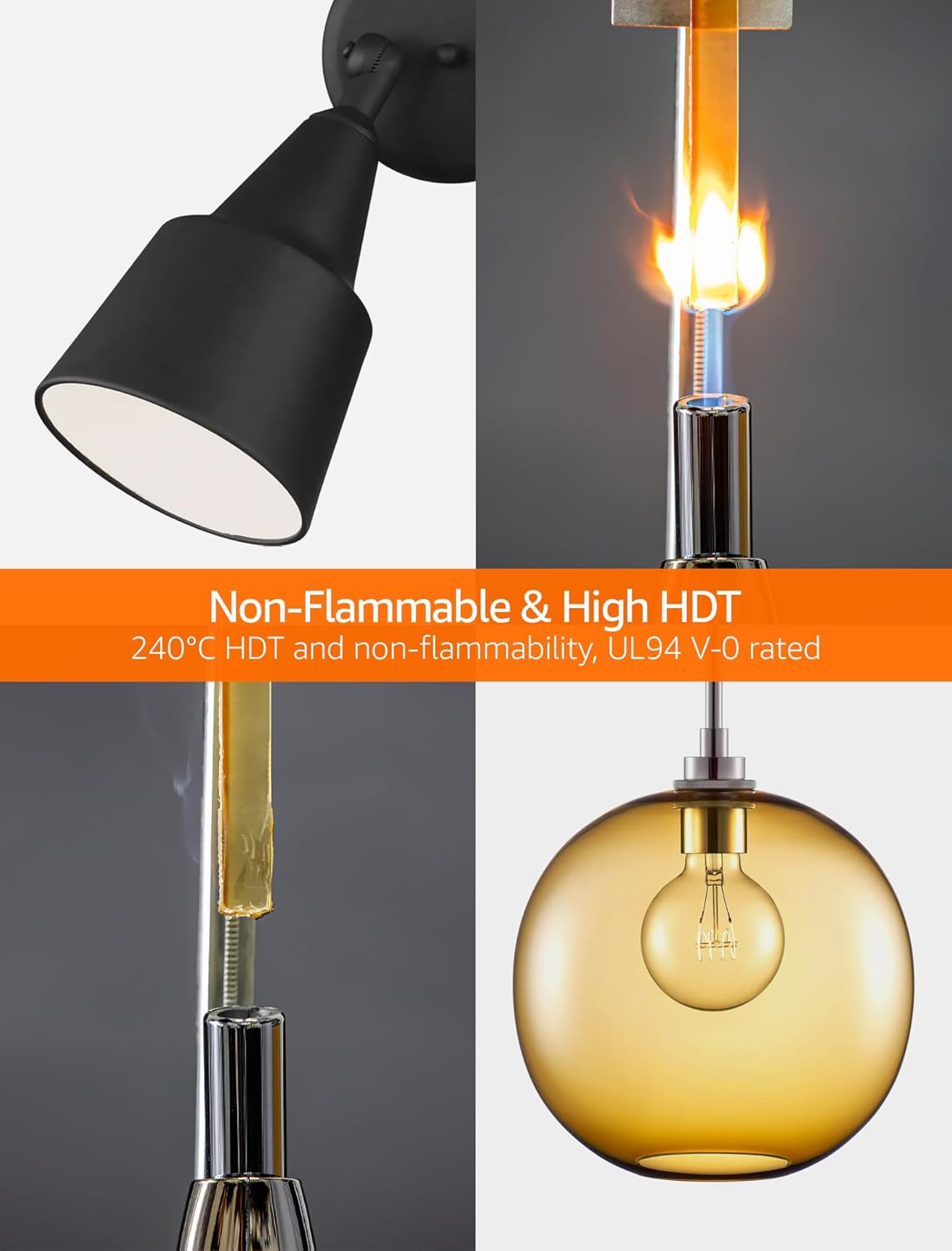

NON-FLAMMABILITY TEST FOR UL94 V-0 RATING

V-0 Series of Flex, PP, and ESD Pass UL94 V-0 Non-Flammability Test

The halogen-free, flame-retardant oligomer synthesized by 3DMaterials enables SuperFlex V-0, SuperPP V-0, SuperESD V-0, and SuperHDT V-0 to meet UL94 V-0 flammability requirements (ASTM D3801, AITM2). SuperFlex V-0 balances softness and strength to simulate rubber or TPU. SuperPP V-0 series has a modulus of 0.6 ~ 0.9 GPa and up to 35% elongation at break. SuperESD V-0 has low surface resistivity (10^8 Ohm) for ESD safety. SuperHDT V-0 achieves the highest heat deflection temperature of 464°F.

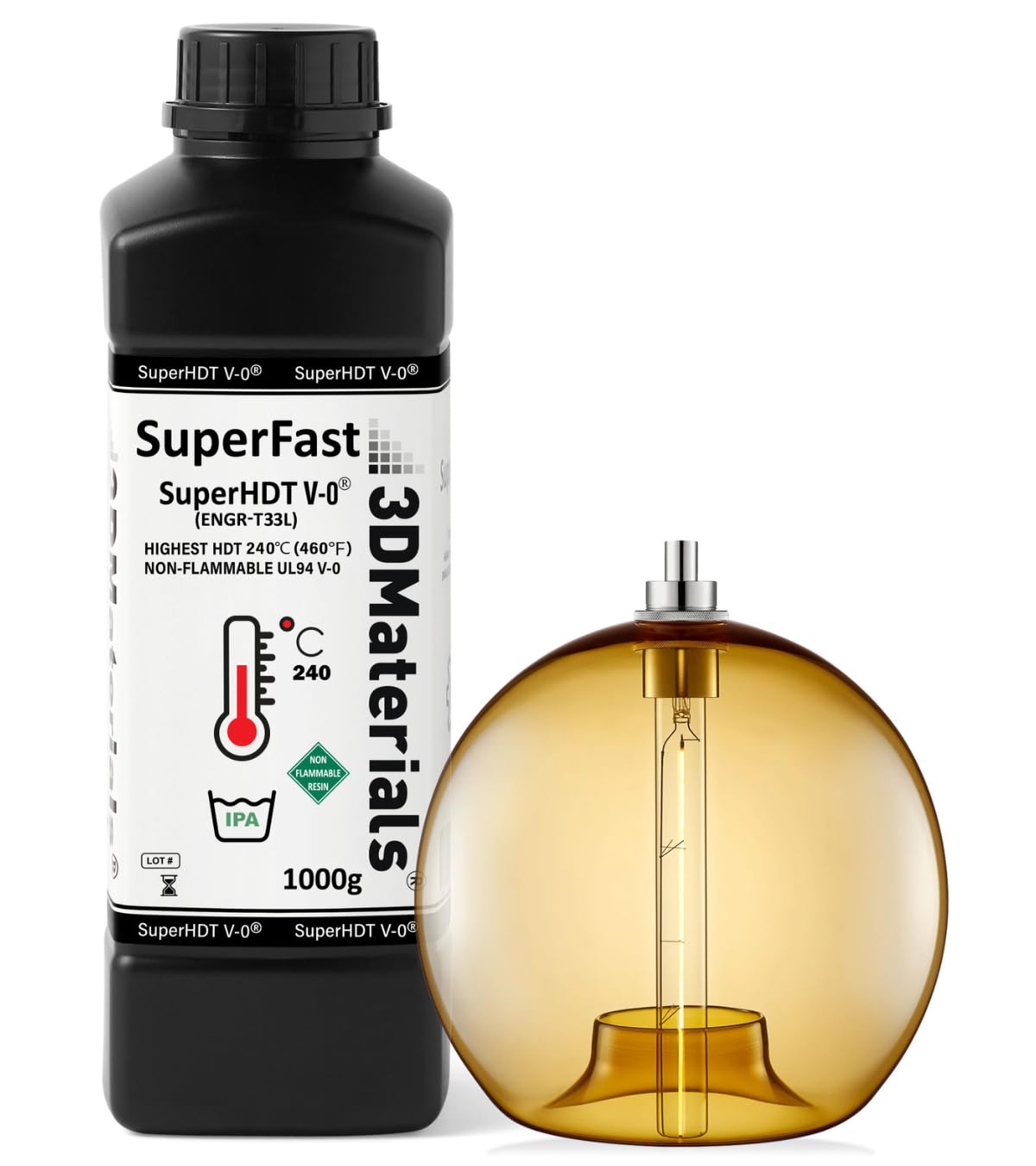

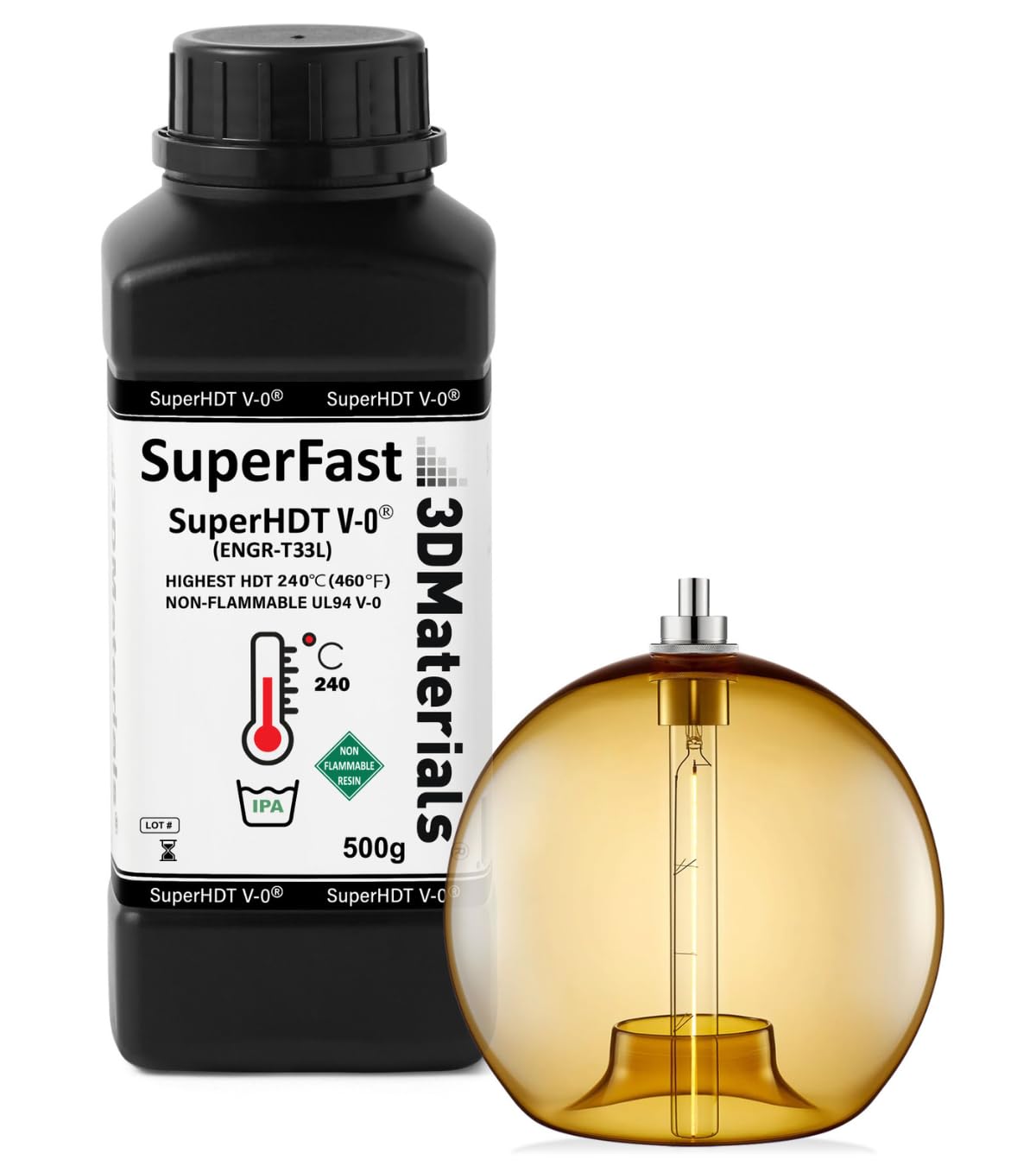

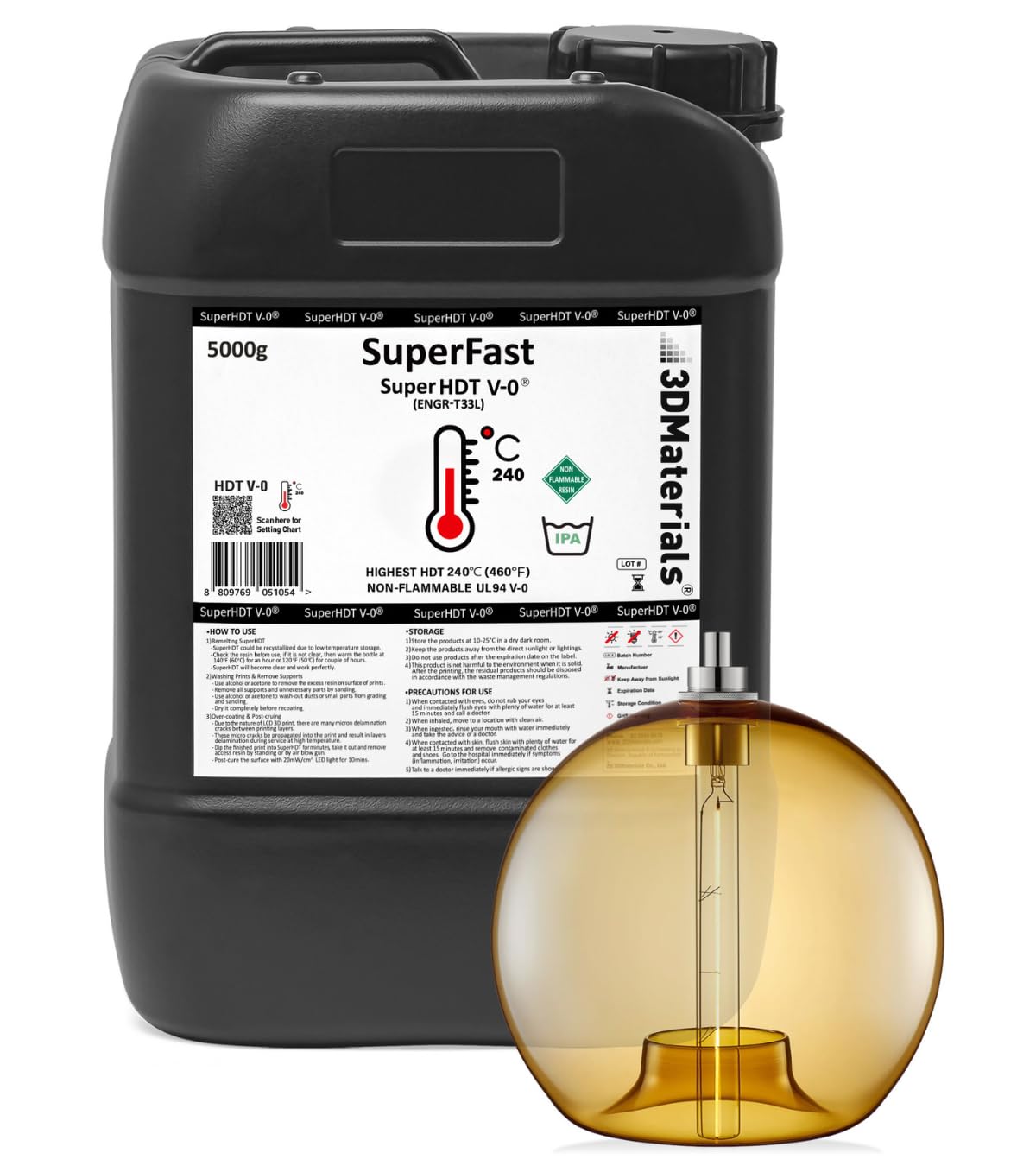

AMBER PENDENT LIGHT COVER by SUPERHDT V-0

Honey-hued pendant cover 3D printed in SuperHDT, 464°F HDT, UL94 V-0 rated.

This pendant light cover, with a rich honey-saturated hue, was 3D printed using SuperHDT resin. Engineered for durability, SuperHDT offers an impressive heat deflection temperature of 464°F and meets the UL94 V-0 non-flammability standard, ensuring both aesthetic appeal and enhanced safety for lighting applications.

COLORING SUPERPP & SUPERHDT

Deep black, solid white, and brilliant colors with a few drops of SuperColor.

SuperFast Clear and SuperValue Clear resins can be pigmented to create new color variations. SuperColor contains 10 times more pigment than conventional coloring agents, producing deep black and solid white colors. Primary colors (Red, Yellow, Blue) and secondary colors (Orange, Green, Violet) are available, along with deep Black and solid White. SuperColor is compatible with all SuperFast, SuperValue, SuperPP, SuperFlex, SuperElastic, SuperRigid resins, as well as other brands.
  • A

    The settings chart is available at the end of this page, or you can download it by scanning QR code on the label of bottle.

  • A

    SuperHDT V-0 is easily recrystallized under low temperature storage, if it is not clear, then warm the bottle at 140°F (60°C) for an hour or 120°F (50°C) for couple of hours. The resin will become clear and work perfectly.

  • A

    Edge micro-cracks may cause high-temp cracking, especially if cleaned with strong solvents. After post-processing, dip the print in SuperHDT V-0 resin, then post-cure to boost heat resistance and prevent cracking beyond heat deflection limits.

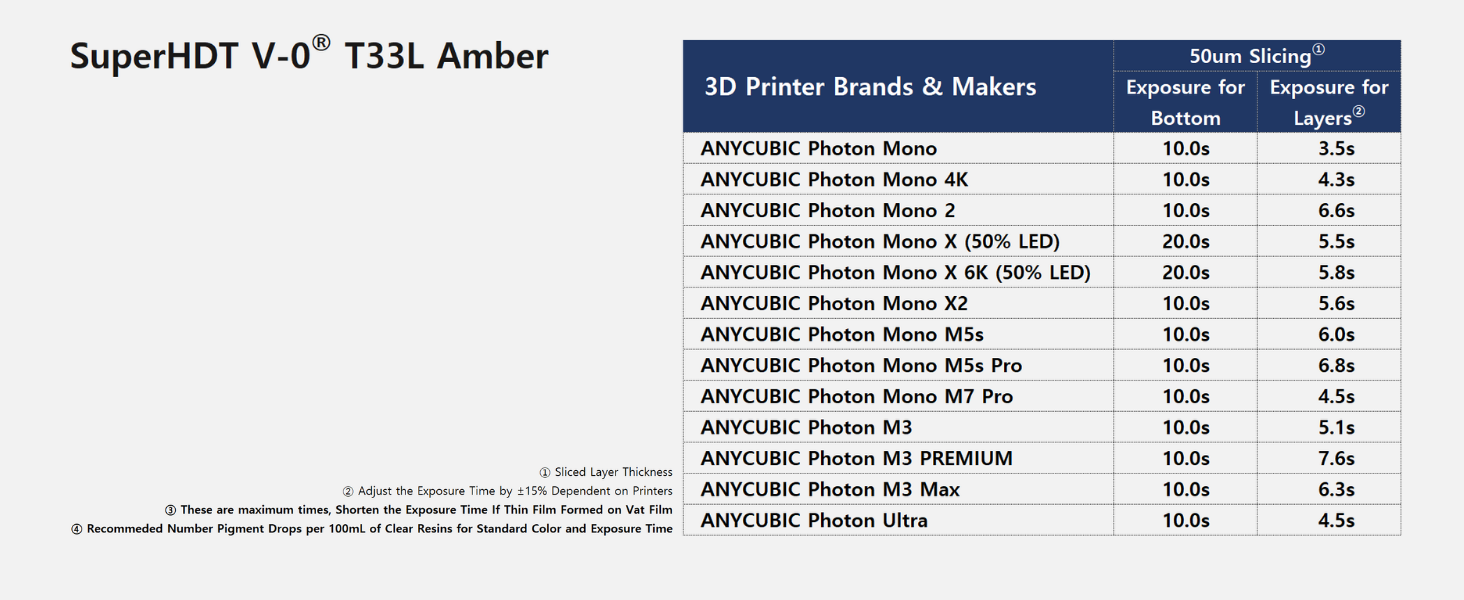

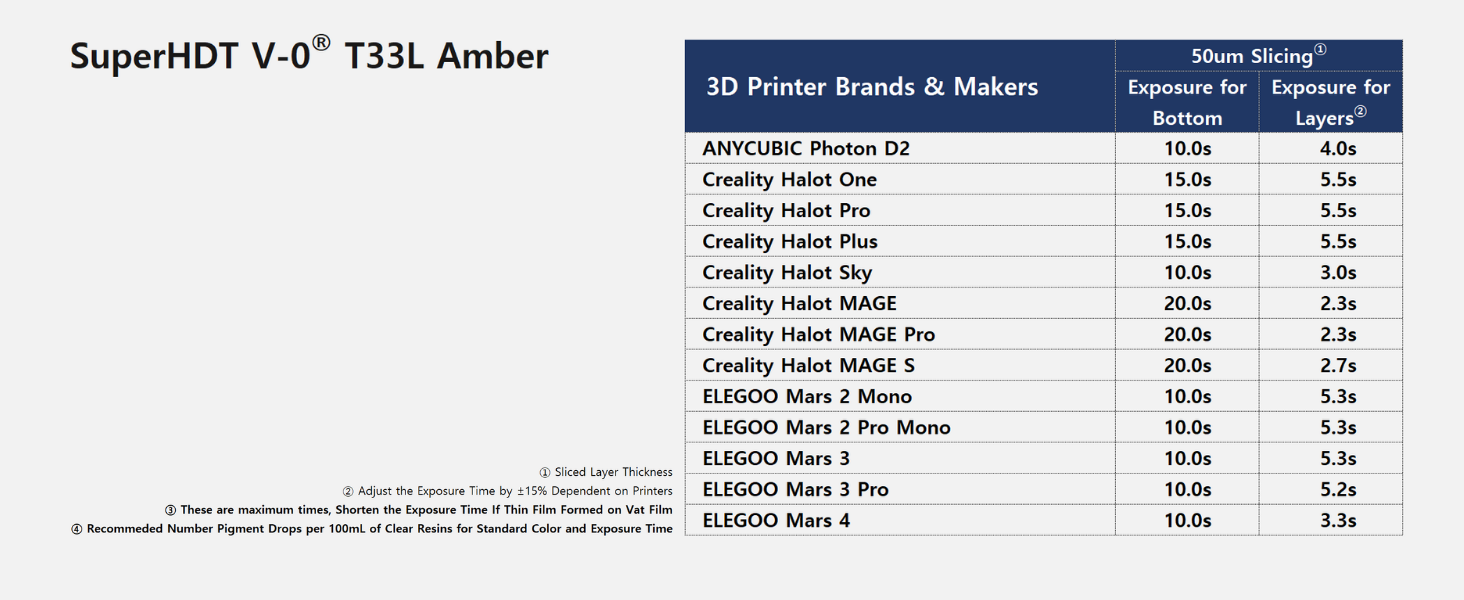

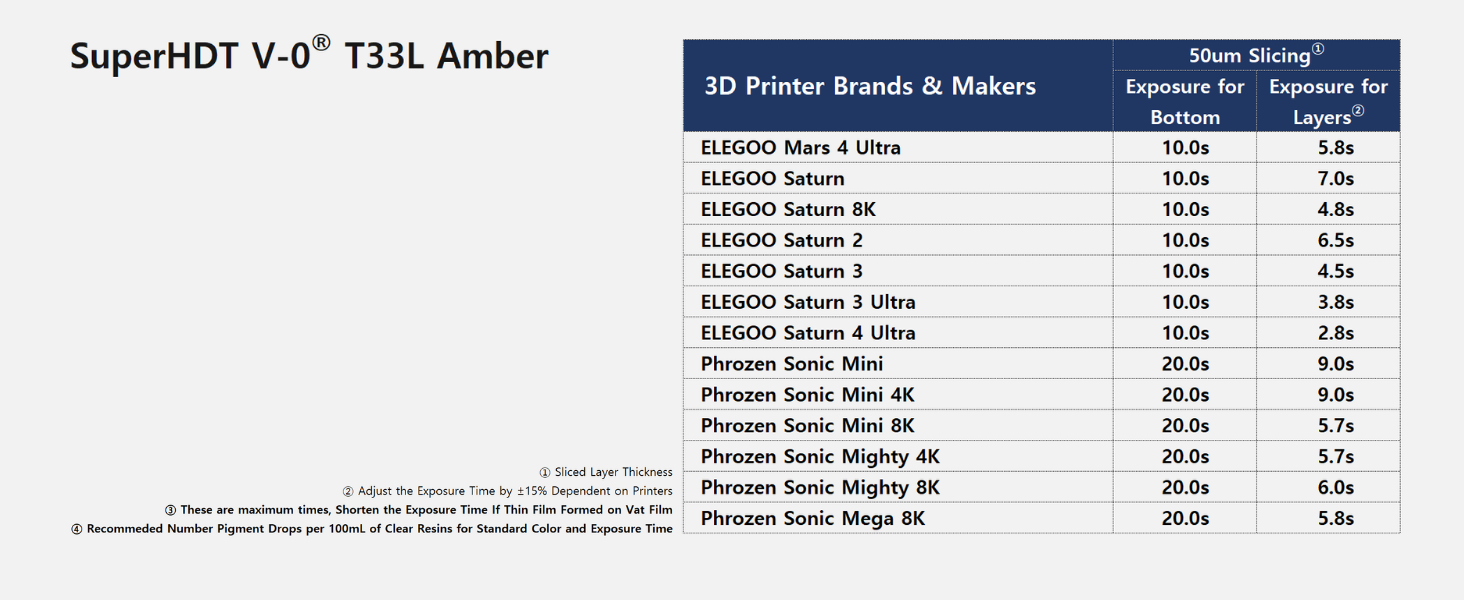

RECOMMENDED LAYER EXPOSURE SETTINGS FOR 3D PRINTERS

These settings were measured and tested for a 50μm layer thickness. Adjust the exposure time by ±15% based on your printer's conditions. Colored prints were tested using the recommended number of pigment drops per 100mL of clear resin.
